Cartoning Machine

Fully Servo-Driven Automatic Cartoning Machine

This machine integrates automatic carton erecting, product insertion, flap folding, gluing, and sealing into a single, continuous process. Suitable for a wide range of carton types and specifications, it features PLC-based control with automatic alarms and fault diagnostics. The system offers a user-friendly interface, simple operation, and easy maintenance. Its sealing unit performs all functions—including erecting, inserting, folding, and sealing—automatically, eliminating the need for manual intervention. All parts that come into contact with the cartons are constructed from high-quality st···

TAGS:

TEL MSG

Details Parameters Sample Company

Product Introduction

This machine integrates automatic carton erecting, product insertion, flap folding, gluing, and sealing into a single, continuous process. Suitable for a wide range of carton types and specifications, it features PLC-based control with automatic alarms and fault diagnostics. The system offers a user-friendly interface, simple operation, and easy maintenance. Its sealing unit performs all functions—including erecting, inserting, folding, and sealing—automatically, eliminating the need for manual intervention. All parts that come into contact with the cartons are constructed from high-quality stainless steel and aluminum with a polished finish; the machine boasts an attractive appearance and is environmentally friendly.

Product Parameters

ParameterSpecification
Power Supply220V/50Hz
Power (KW)11kW
Production Speed30–40 pcs/min
Applicable Paper Tray170×140×50mm, 190×170×40mm, 220×155×45mm, 170×140×50mm, 173×150×55mm, 160×140×30mm, 195×160×25mm, 160×120×25mm, 160×135×45mm
WeightApprox. 2.2T
Paper Tray RequirementsThe paper tray crease should generally be 0.4mm deep, and the tray must be pre-folded. If the tray is opened manually, it cannot be formed, and the machine will be unable to open the tray.
No.NameBrandOrigin
1The main bodyStainless steel and steel materialsGuangDong
2Electric elementsSchneider / OmronFrance / Japan
3PLCInovance / XinjeChina
4Touch screenInovance / XinjeChina
5Pneumatic componentsAirtacTaiwan‑funded
6BearingLuoyangChina
7Servo motorInovance / XinjeChina
8Dual‑tube dual‑gun hot melt glue machineNordsonUSA

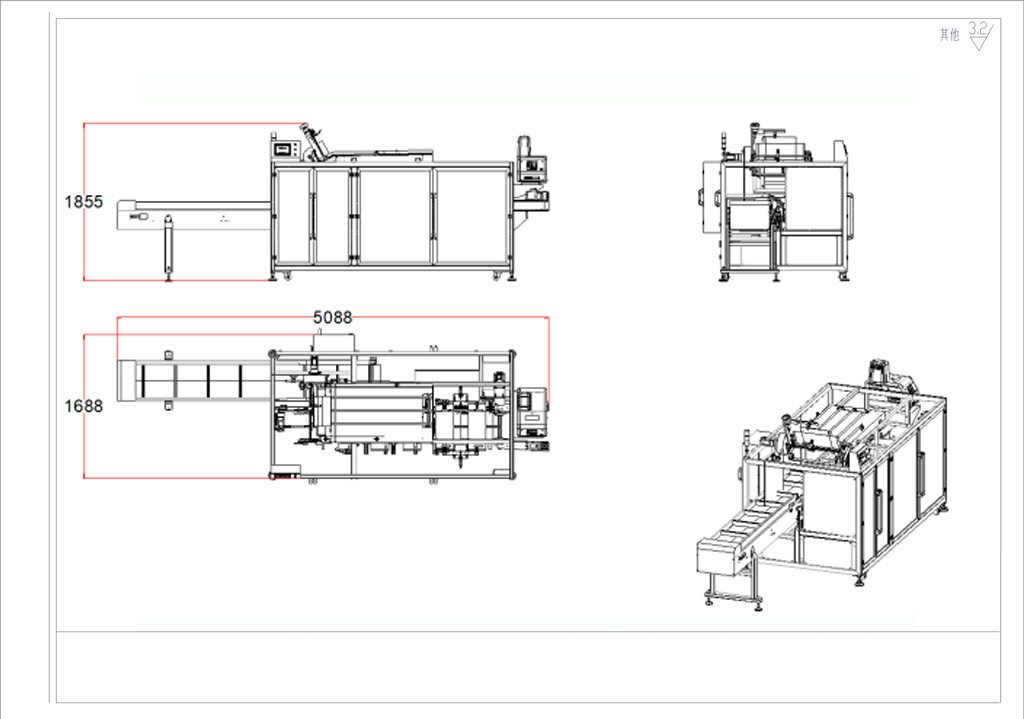

Product Drawings

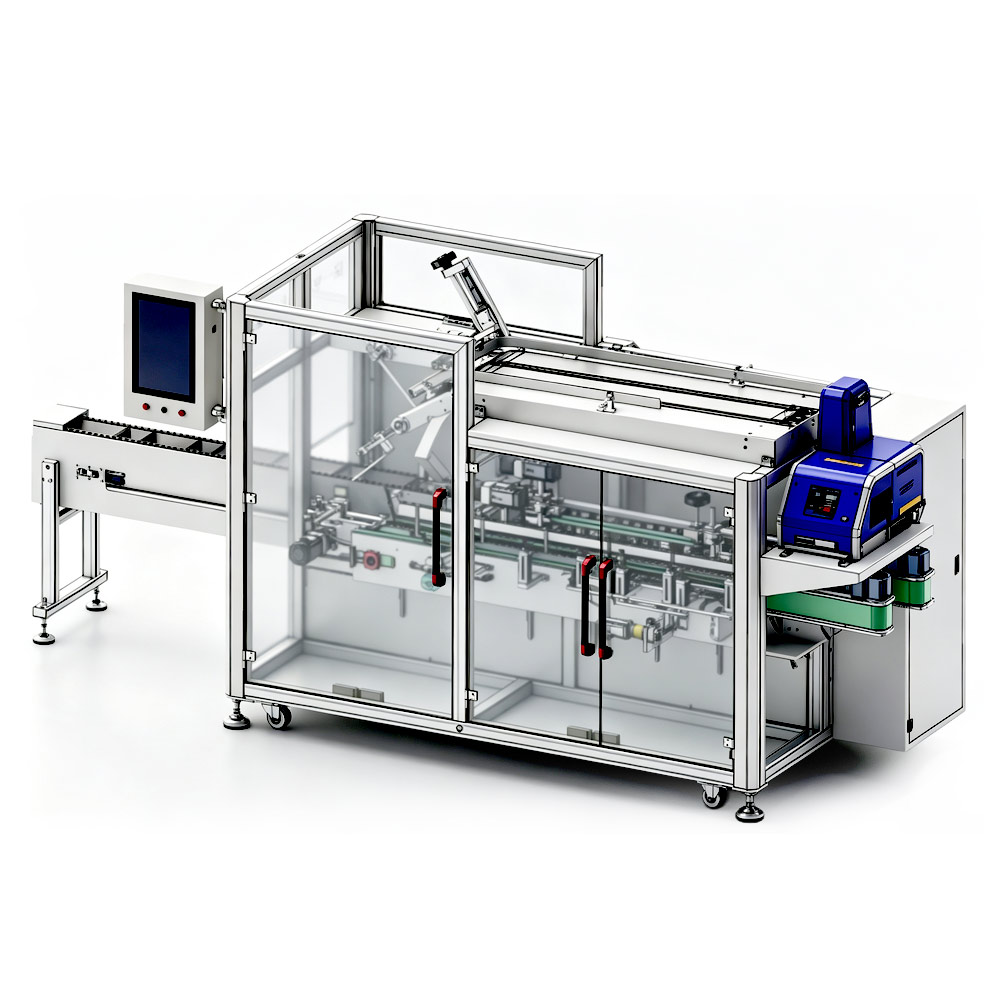

Fully Servo-Driven Automatic Cartoning Machine

More photos

Factory Introduction

Loy Technology Co., Ltd.

Company Profile

Loy Technology Co., Ltd.

Loy Technology Co., Ltd. We specialize in the research, development, manufacturing, and sales of intelligent automation equipment, with years of experience in the industry. Adhering to the principle of "Technology + Expertise + Service," and leveraging a team with over 20 years of experience, we have established a strong presence in the field of custom-made automation for non-woven products.Our products include mask machines, automated equipment for disposable non-woven products and respiratory protective equipment, packaging machines, and tissue machines, boasting leading technology and reliable quality. We collaborate with leading brands such as Dasheng and Sanqi, and our products are exported to Korea, Europe, and the United States, earning widespread customer recognition.
