Product Overview

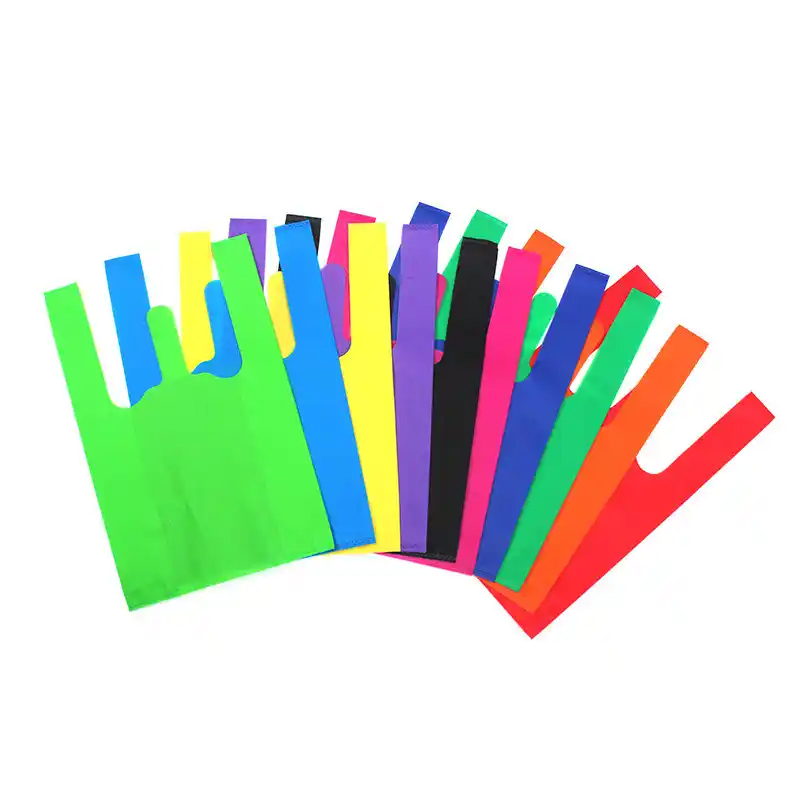

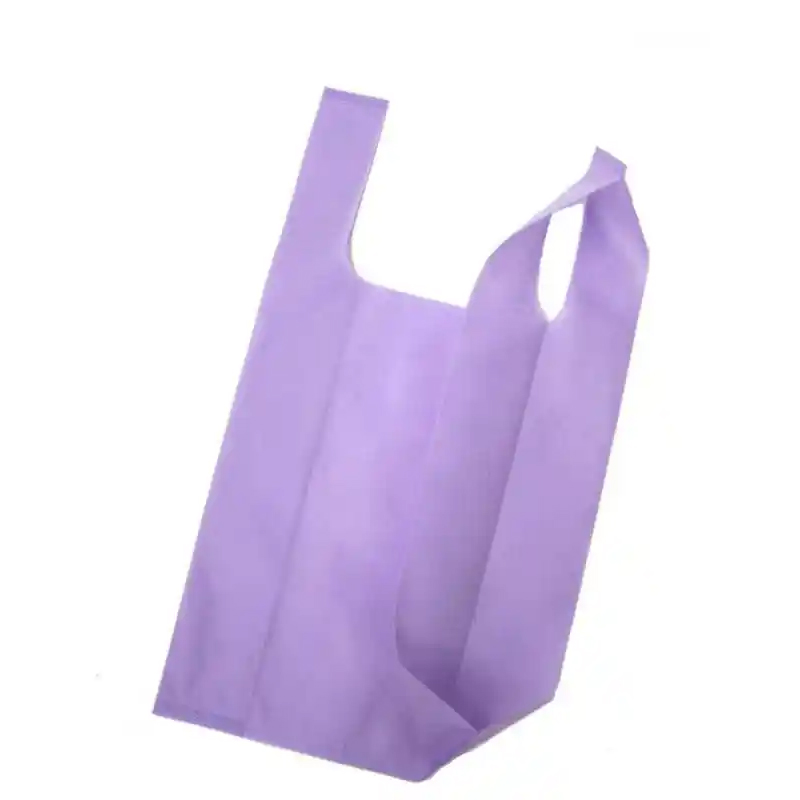

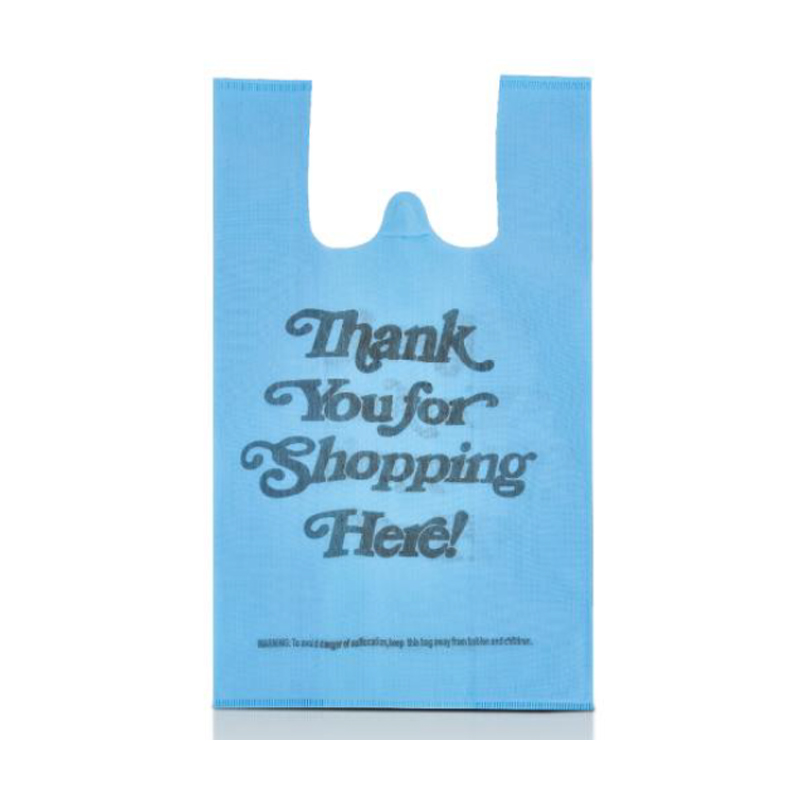

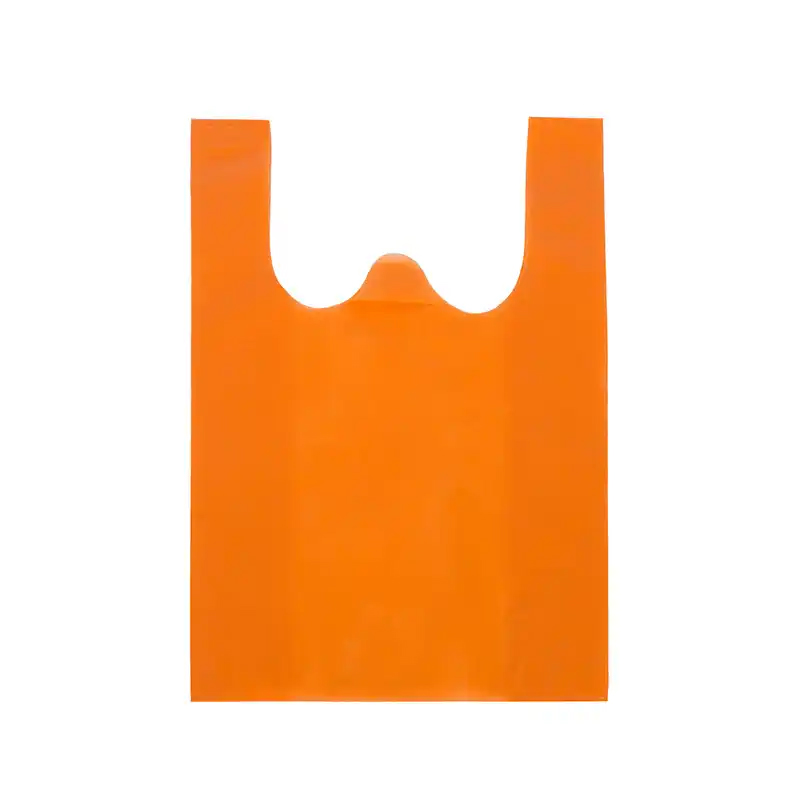

This machine automatically punches the bags during production. Its punching speed reaches 20-60 per minute, equivalent to the punching speed of five manual hydraulic punches and five workers. It can produce vest bags, three-dimensional bags, flat bags, drawstring bags, and other bags. It is widely used in packaging for clothing, footwear, wine, and gifts, significantly reducing labor and manufacturing costs!
Product Features
1. This machine is suitable for non-woven fabrics and can produce a variety of non-woven bags of various sizes and shapes, including vest bags, flat bags, drawstring bags, and three-dimensional bags. This integrated electromechanical machine is operated using an LCD touch screen. Equipped with step-by-step length setting, photoelectric tracking, computer-controlled automatic positioning, and automatic edge correction, it ensures accurate and stable operation. Automatic counting, programmable count alarms, automatic punching, and automatic handle ironing ensure secure sealing and beautifully cut edges. High speed makes it a reliable and environmentally friendly bag-making machine.
2. Process flow: Roll material... Folding edge... Threading... Heat sealing... Folding in half... Inserting edge... Positioning... Punching... Three-dimensional... Heat sealing... Cutting... Punching... Collecting finished products.
MAIN PARAMETERS | |
Model | LY-A700 ULTRA |
Suitable material | Non-woven fabric |
Material width | 500-1250mm |
Production speed | 40-80pcs/min |
Bag width | 100-800mm for flat bag 200-400mm for t shirt bag |
Bag height | 200-580mm for flat bag |
300-700mm for t shirt bag | |
Bag gusset | 60-200mm |
Bag thickness | within 25-100g |
Power supplier | 380V/ 50Hz |
Max power | 12kw |

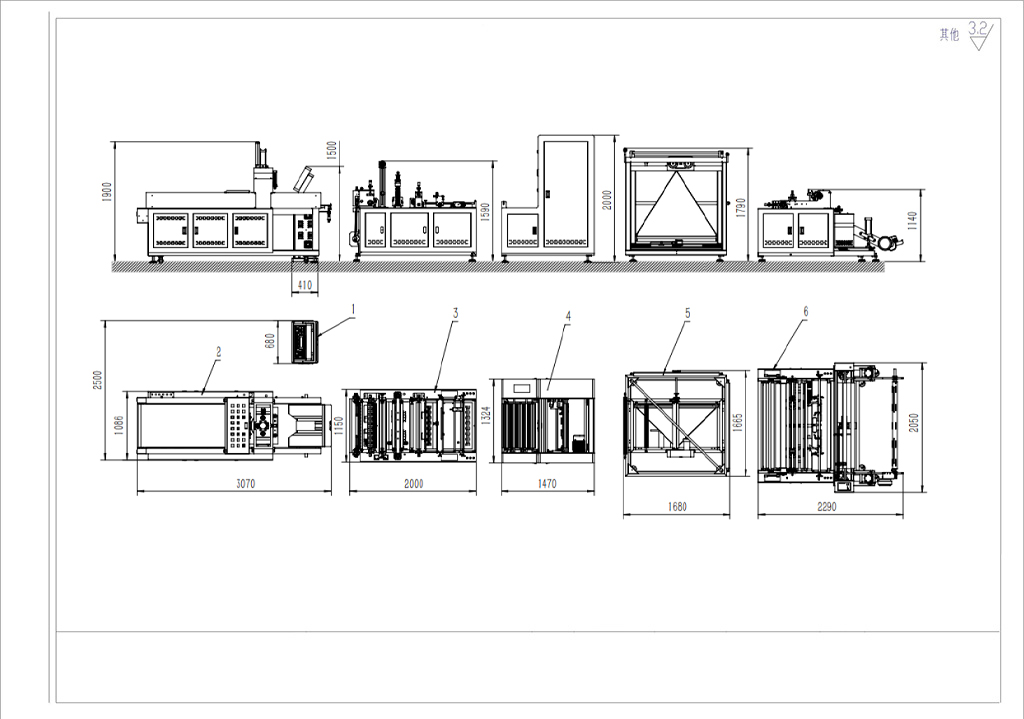

Install size (L*W*H) | 10500*2050*1900mm |
Weight | 2200kg |
Air compressor | Air pressure: 0.6-1.0Mpa Air flow ≥0.2m³min |
| Accessories | Parameter Description |
|---|---|
| Motor (2 pcs) | AC motor for unwinding: 1pcs(0.75KW) |
| Motor (2 pcs) | Synchronous motor for web guide: 1pcs(110W) |
| Cylinders (6 pcs) | 1. Pneumatic auto loading cylinder: 2pcs2. Swing arm cylinder: 2pcs3. Bag mouth sealing cylinder: 2pcs |
| Magnet powder tension controller and EPC box (web guide control) | Tension control magnet power tension controller: 1pcs(5KG)EPC box(for web guider control): 1pcs |
| Air shaft (1 pcs) | Unwinding shaft(Flatulence axis): 1pcs (Φ3" Φ76mm), length: 1350mm |
| Ultrasonic sealing system (2 sets) | Ultrasonic generator box and horn for bag mouth sealing: 2 sets(China brand, 1500W,20KHz, horn journey:70mm) |
| Ultrasonic sealing system (2 sets) | Round sealing mould (sealing shape customize available) |
| Accessories | Parameter Description |
|---|---|
| Motor (2 pcs) | Fabric folding adopt DC motor for feeding assist (500W) |
| Motor (2 pcs) | Manual fabric correction (web guide) adopt synchronous motor (90W) |
| Accessories | Parameter Description |
|---|---|
| Motor (2 pcs) | Fabric feeding adopt AC motor (1.5KW) |
| Motor (2 pcs) | T-shirt bag sealing mould drive adopt DC motor (500W) |
| Pneumatic device | Pneumatic connector input of air compressor cylinder(4pcs) |
| Ultrasonic sealing systems (1 set) | New Magnetic levitation rotating ultrasonic |
| Accessories | Parameter Description |
|---|---|
| Motors (3 pcs) | AC reduction motor (1.5KW) |
| Motors (3 pcs) | Double fabric feeding adopt stepping motor (Soyo) |
| Cylinder (1 set) | D-cut bag punching adopt pneumatic punching |
| Ultrasonic sealing system (2 sets) | Bag sealing adopt ultrasonic welding (3000W, 15KHz, horn journey - 300mm) |
| Ultrasonic sealing system (2 sets) | Sealing mould (sealing shape customize available) |
| Photosensitive eye (1 pcs) | For printing color mark tracking |
| Electrical static eliminator (1 set) | For remove static electricity |
| Cutting knife (1 set) | For bag cutting |
| Accessories | Parameter Description |
|---|---|
| Motors (2 pcs) | AC induction motor: 1pcs(60W) for conveyor drive |
| Motors (2 pcs) | Servo motor: 1pcs |
| Punching disc | Rubber punching disc: 1pcs |
| Cylinder | Cylinders for grabber: 4pcs |
| Cylinder | W-cut punching cylinder: 1 set |
| Air Tank | Suitable for cylinder |
| Punching mould | Punching mould: 5pcs(size 120,140, 160,180,200mm) |
| Control system (Distribution box) | -Motion control PLC: 1pcs-Servo motor driver: 1pcs-Relay: 2pcs |
| Accessories | Parameter Description |
|---|---|
| Control system | AC motor converter: 3pcs |
| Control system | Stepping motor driver: 3pcs |
| Control system | DC motor speed regulate: 2pcs |
| Control system | Motion control PLC: 1pcs (Japan Mitsubishi) |
| Control system | Relay: 2pcs (Schneider) |
| Control system | Man machine interface touch screen: 1pcs (Inovince) |
| Control system | Electric components (CHNT) |
