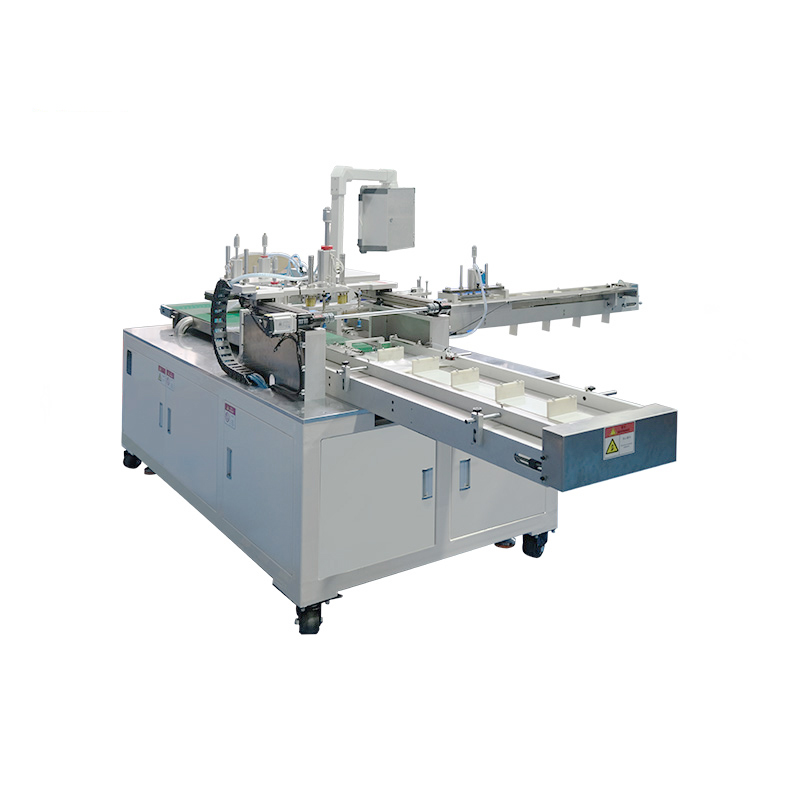

Bagging Machine

bag packaging machine

This packaging machine automatically picks up pre-made packaging bags, automatically inserts products into the bags, and features a single-row bag feeding system. It uses manual material loading, PLC control, and has a user-friendly design with easy parameter settings. With high automation, it includes self-alarm, automatic shutdown, and self-diagnosis functions for safety and ease of operation, and is easy to maintain.

TEL MSG

Details Parameters Sample Company

Product Introduction

This packaging machine automatically picks up pre-made packaging bags, automatically inserts products into the bags, and features a single-row bag feeding system.  It uses manual material loading, PLC control, and has a user-friendly design with easy parameter settings.  With high automation, it includes self-alarm, automatic shutdown, and self-diagnosis functions for safety and ease of operation, and is easy to maintain.

Product Parameters

ModelLY-N019-5
Dimensions2900*1880*2490 mm
Output power
6Kw
Speed25-30pcs/min
Air pressure0.6-0.8 mpa
Weight682kg
Power supplyAc220/380v 50/60hz

Equipment-Applicable Raw Material Specifications

No.ItemSpecifications
1Suitable Mask Size- Mask Length: 175mm- Mask Width: 95mm

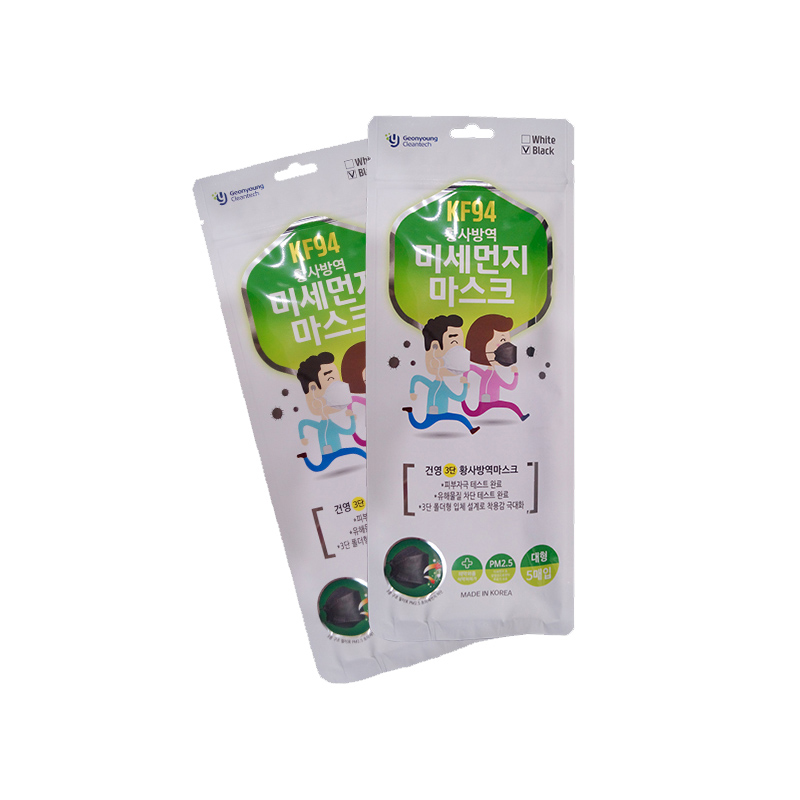

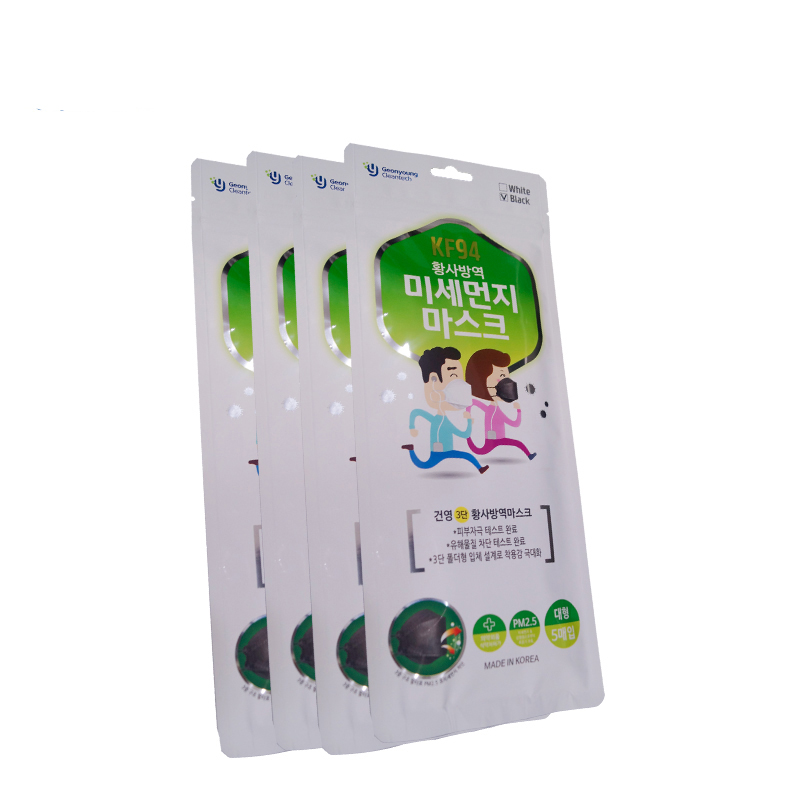

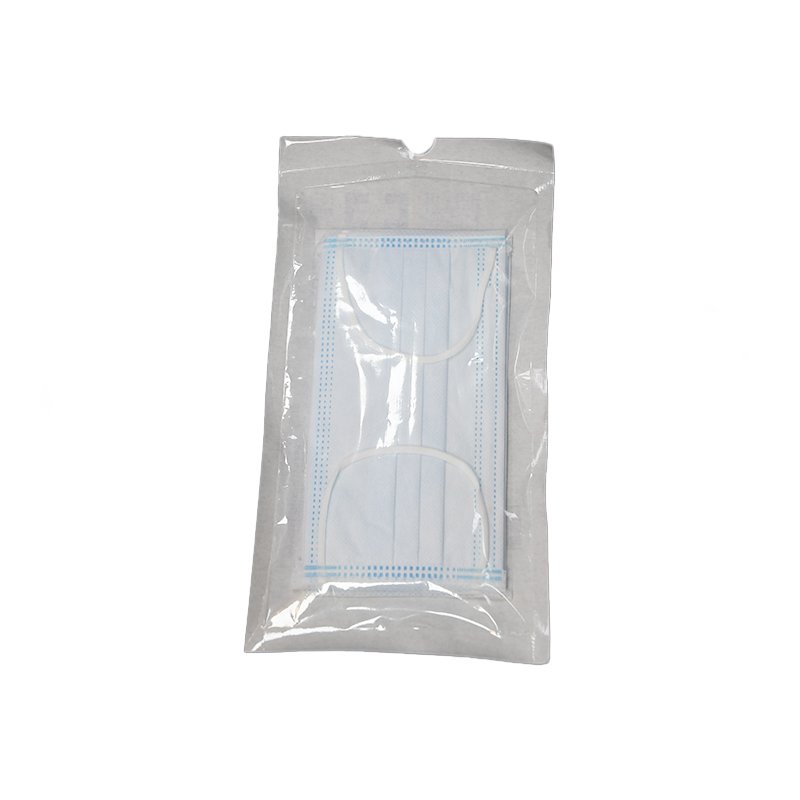

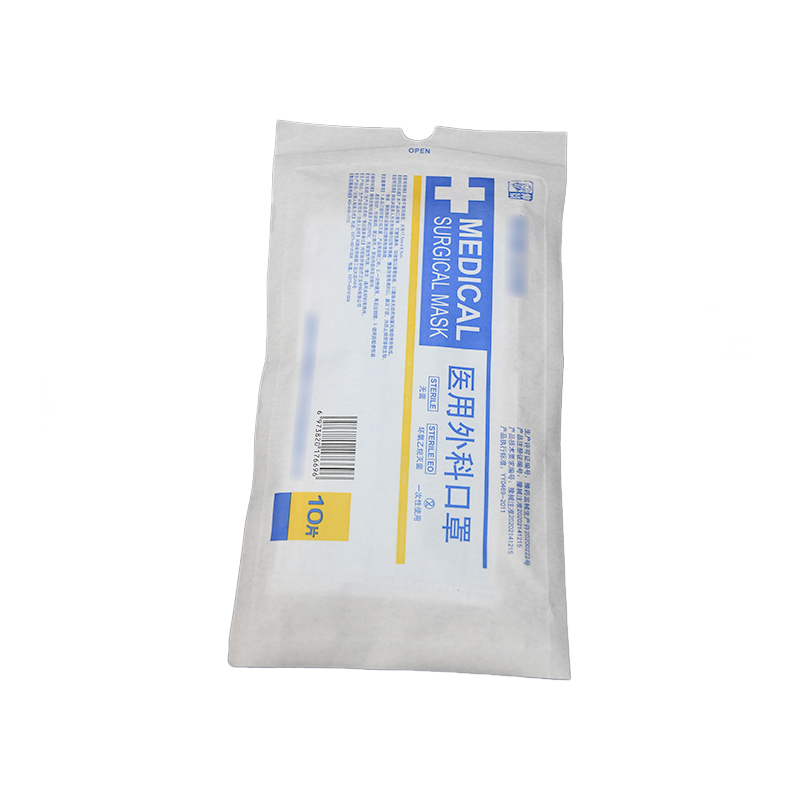

2Mask Packaging Bags (Paper-Plastic/Plastic-Plastic)- Bag Width: 155mm- Bag Length: 270mm

Configuration List

NameQuantityBrand or OriginMaintenance PeriodRemarks
Main Machine Circuit Control Box1 setSelf-manufactured by the factory, with imported electronic components6 months-
PLC1 setDelta6 months-
Vacuum Suction Cup1 setZP3-T16UMNK20-B5ZP3B/ZPT20CNJ30-B5-A106 months-
Heating Tube1 set10*1906 months-
Cylinder1 setAirtac6 months-
Servo Motor (Leadshine)1 setACM1S-06004H2F1-M17S (400W)6 months-
Planetary Reducer1 setPLF060-L1-3-S2-P2 / 0.4KW6 months-
Closed-Loop Stepper Motor1 set86CME1206 months-
Centrifugal Fan1 pieceThree-Phase Boiler Induced Draft Fan Y5-47 1.5KW with Bracket6 months-
Vacuum Pump1 pieceBL-40E6 months-
Air Tank1 piece10L, Diameter 2006 months-
Digital Pressure Gauge1 setDPSN1B010206 months-
Sensor1 setYuan Lifu6 months-
Temperature Controller1 setDTK4848R126 months-
Touch Screen (Delta)1 pieceDOP-110CS6 months-
Air Source Processor1 pieceBFC400016 months-
Module1 setX40, Y60 (Approx.)6 months-

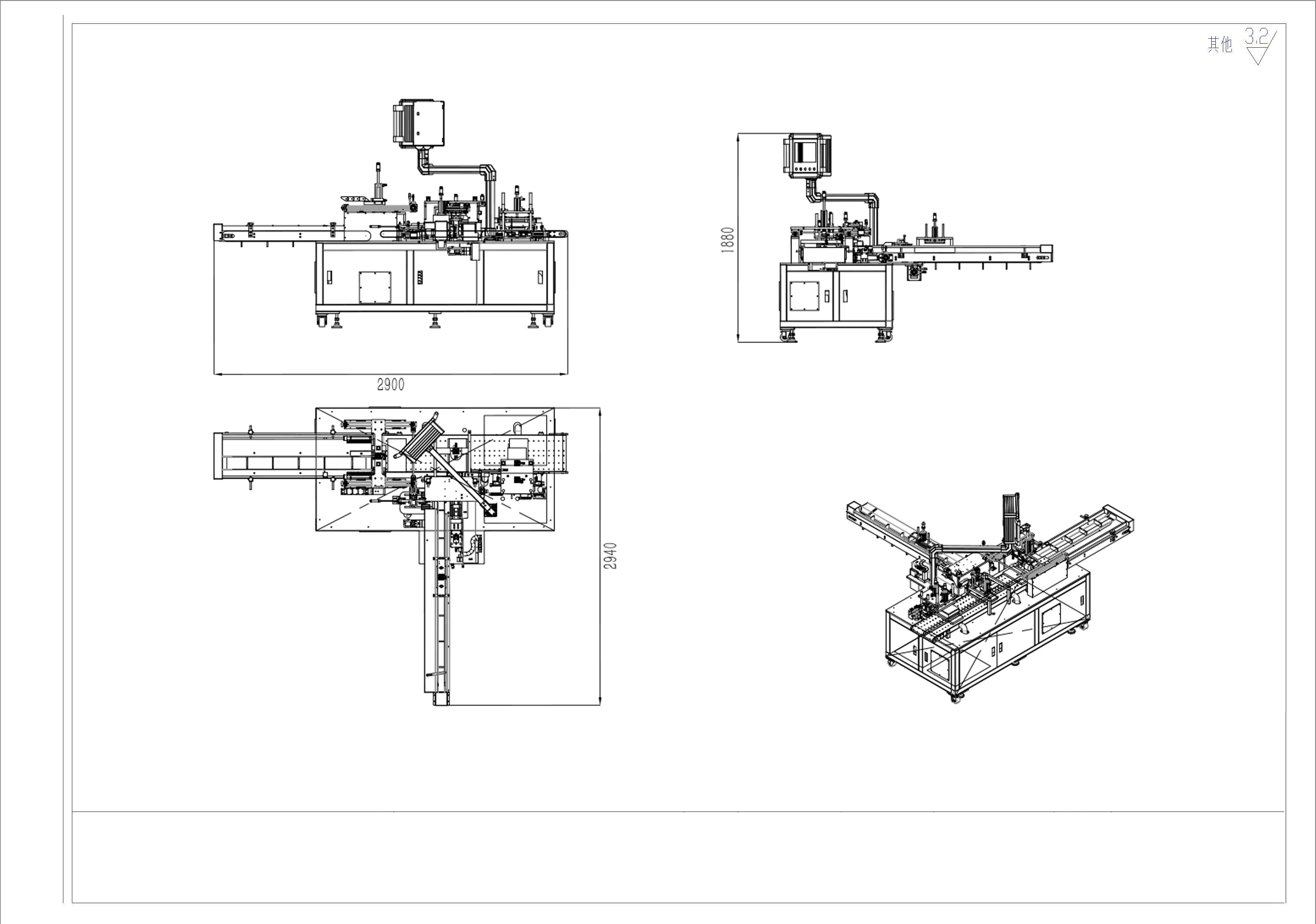

Product Drawings

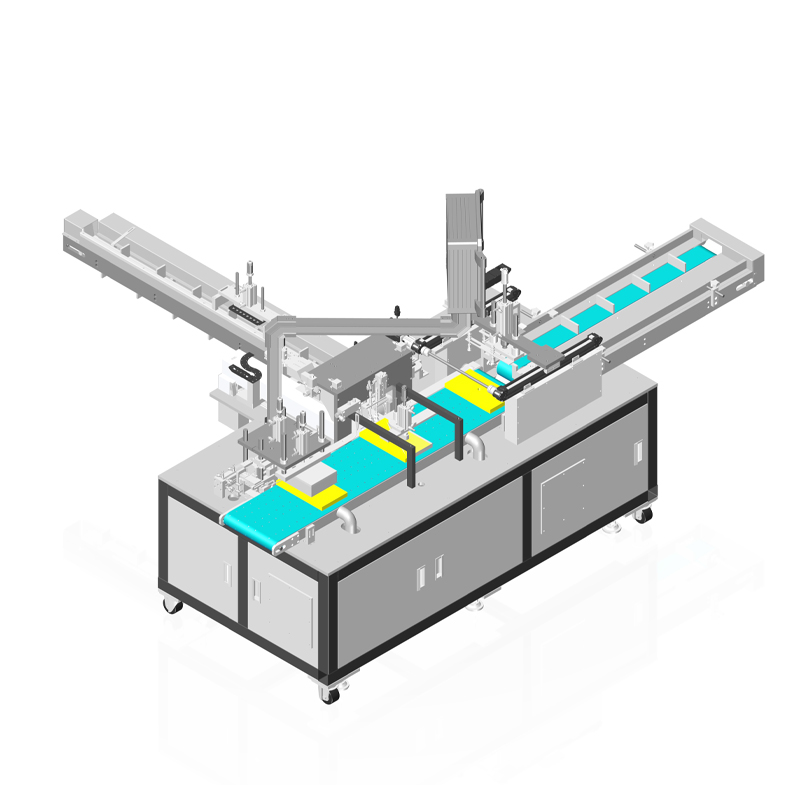

bag packaging machine

More photos
