The working principle of the equipment: manual unwinding → conveying → longitudinal folding → conveying → fixed-length positioning cutting → transverse folding → finished product conveying.
The equipment operates in an uninterrupted and non-stop manner during production to ensure product folding accuracy and reduce raw material loss.

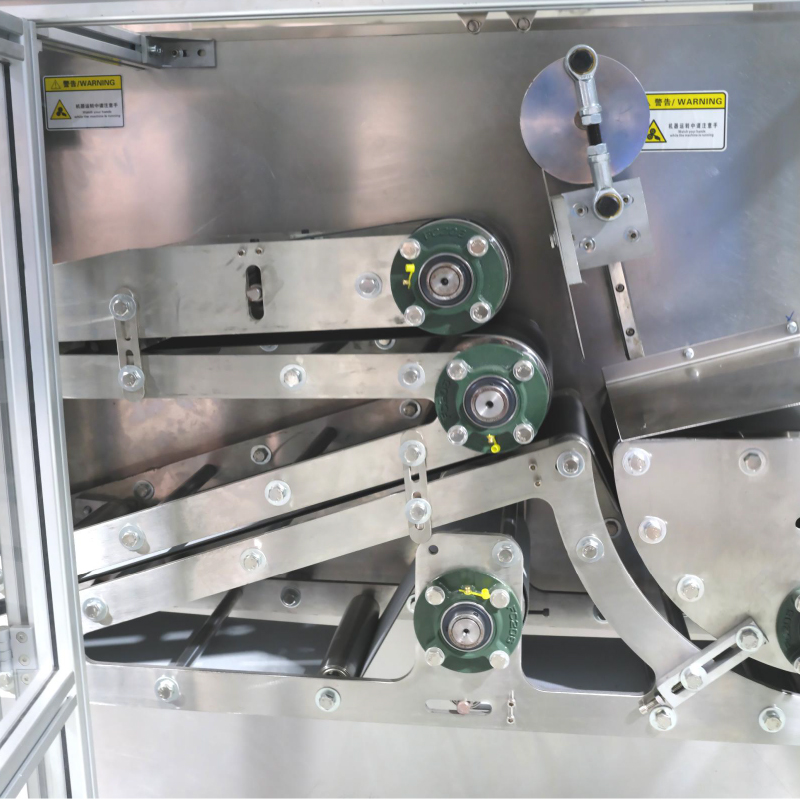

The equipment is equipped with a synchronous conveying loading and magnetic powder tension controller to ensure stable tension during finished product conveying.

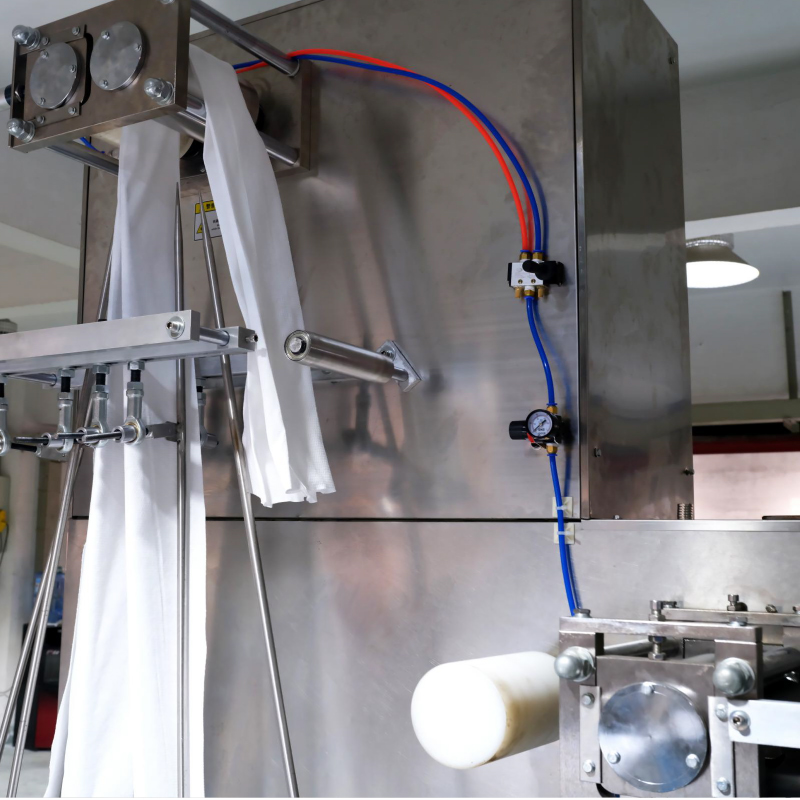

The equipment is equipped with our factory's innovative multi-functional special-shaped folder, which can convert more product folding methods and is easy to adjust.

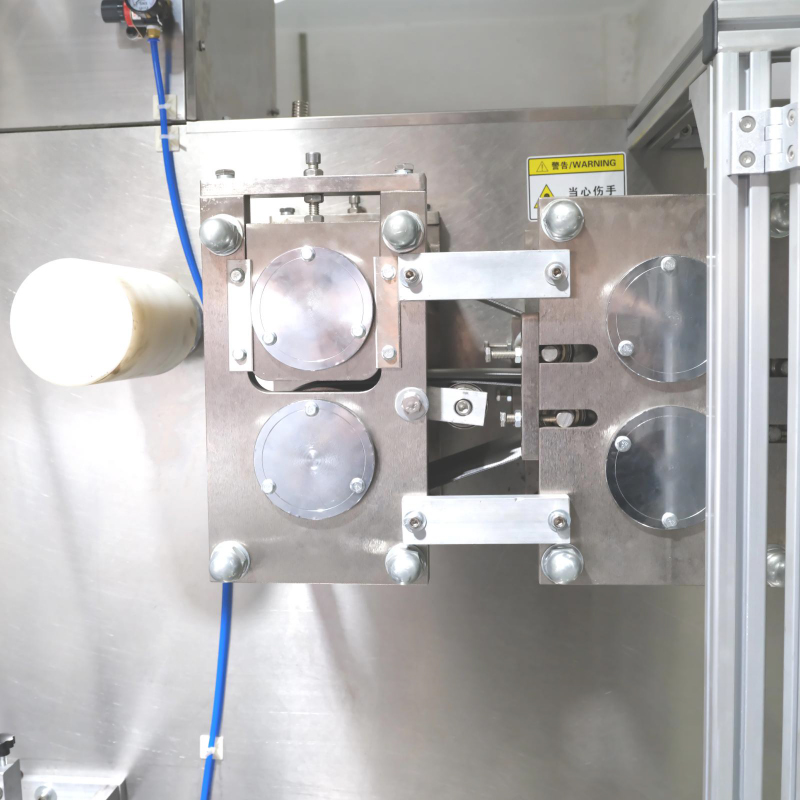

The equipment uses a servo-controlled slider-type transverse fork knife, which can fold horizontally up to three times.
The equipment uses servo-controlled imported cutting tools for cutting, which ensures precise cutting.
The equipment uses a servo motor combined with a PLC programming controller and a microcomputer display to jointly control production. All production parameters are clear at a glance and easy to operate.
The exterior of the equipment is made of stainless steel.
The equipment design concept is efficient, compact, fast, stable, and meets the requirements of various national hygiene standards.
| Parameter Item | Specification |
|---|---|
| Equipment Name | Fully Automatic High-speed Disposable Bath Towel Folding and Packaging Machine |
| Equipment Model | LY-2000 |
| Packaging Speed | 40-80 bags/min |
| Maximum Packaging Specification | Length 300mm, Width 200mm, Height 50mm |
| Minimum Packaging Specification | Length 150mm, Width 100mm, Height 10mm |
| Unwoven Fabric Unfolded Size Range | L300-1600mm W250-800mm |
| Unwoven Fabric Folded Size Range | L150-400mm W100-200mm |
| Rated Power Supply/Voltage | AC380V, 50Hz |
| Rated Power | 8KW |
| Maximum Feeding Width/Maximum Raw Material Diameter | 800mm/1000mm |
| Machine Weight | 2000Kg |

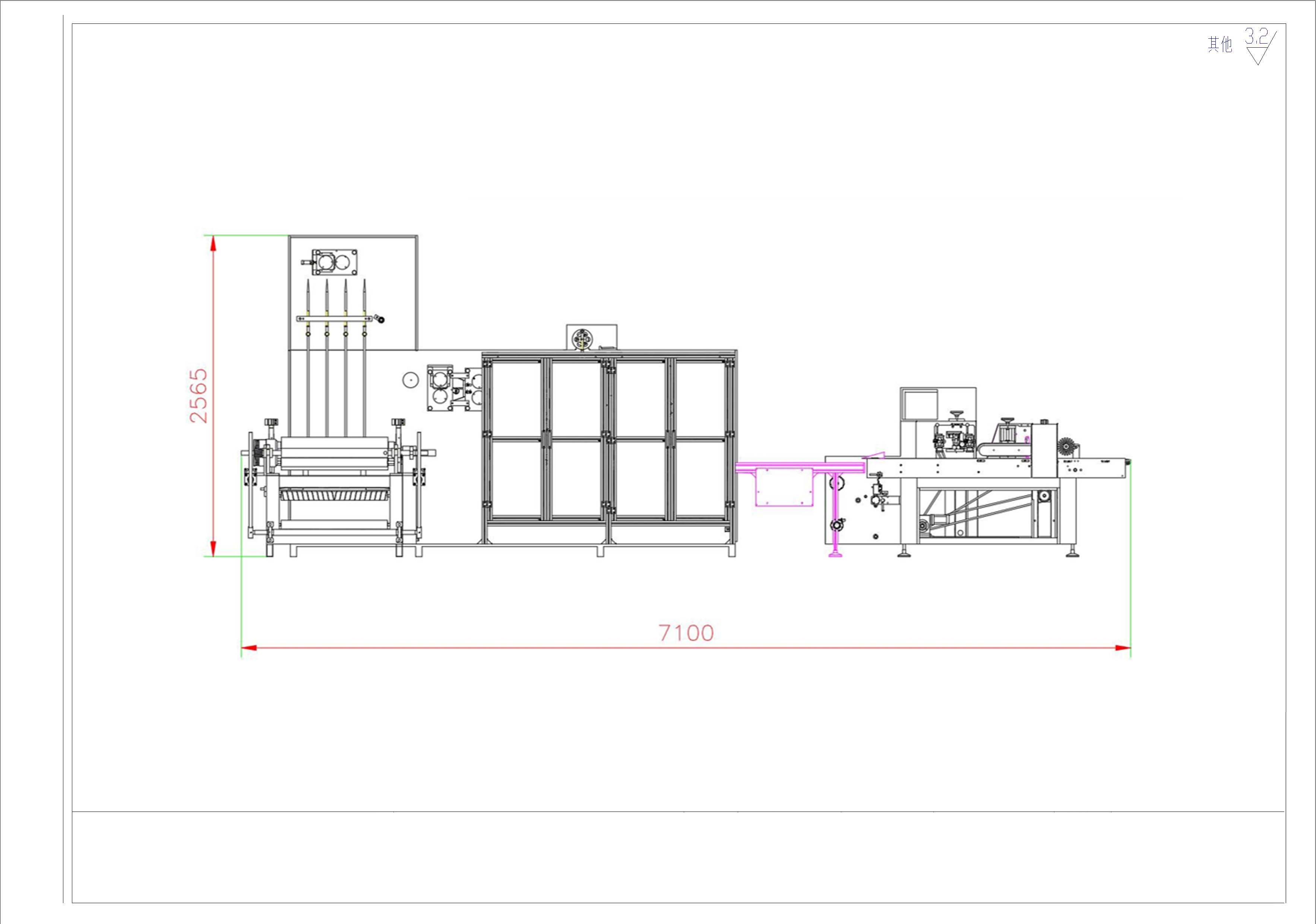

| Machine Dimensions | Length 7.1m, Width 2.75m, Height 2.56m |
Name | Brand | Model | Qty |
HMI Touch Screen | Inovance | IT7070EI-4G | 1 |
PLC | Inovance | AM404-CPU1608TN | 1 |
Extension Module | Inovance | GL10-4DA | 1 |
Switching Power Supply | Mean Well | LRS-100-24 | 1 |
Servo System | Inovance | IS630NS5R5I | 3 |
IS630NT8R4I | 1 | ||
Frequency Inverter | Sajie | VM1000B-4T004GB | 1 |
Proximity Sensor | Panasonic | GX-112MHA | 4 |
Relay | Shenle | RKE2CO024LT | 4 |
Circuit Breaker | Chint | NXB-63 4P C40 | 1 |
Chint | NXB-63 2P C25 | 1 | |
Chint | NXB-63 2P C20 | 1 | |
Chint | NXB-63 1P C10 | 1 | |
Packing Machine | Huitong | HT-350 | 1 |
