Paper Roll Machine

Toilet paper production line

The production line consists of the following components: Automatic material feeding → Synchronized pulling mechanism → Steel-on-steel embossing → Sealing/welding → Automatic tube discharge and rewinding → Automatic cutting and adhesive application → Automatic material guiding → Automatic paper cutting → Automatic conveying → Automatic carton insertion → Automatic packaging → Automatic heat shrinking → Finished product output; Fully automated process.

TEL MSG

Details Parameters Sample Company

Product Introduction

The production line consists of the following components: Automatic material feeding → Synchronized pulling mechanism → Steel-on-steel embossing → Sealing/welding → Automatic tube discharge and rewinding → Automatic cutting and adhesive application → Automatic material guiding → Automatic paper cutting → Automatic conveying → Automatic carton insertion → Automatic packaging → Automatic heat shrinking → Finished product output; Fully automated process.

Product Parameters

ModelLY-F2200
Dimensions8500*1200*1400mm
Output power
15Kw
Speed30-100bags/min
Air pressure0.6-0.8 mpa
Weight1200KG
Power supplyAc220/380v 50/60hz
NameQuantitySpecification
Roll Paper Width1 Roll≤2100mm
Material Unwinding Rack1 SetLoad capacity: 3 tons
Raw Paper Material30-80gsm Wood-pulp Composite Paper
Raw Paper Diameter≤1000mm
Inner Diameter of Raw Paper Core Tube3 inch = 76.2mm
Finished Product Diameter80-120mm
Inner Diameter of Finished Paper Core Tube38-40mm
Perforation Spacing100-500mm
Production Speed0-90m/min
Control PanelColor Touch Screen
Pneumatic System3HP Air Compressor, Min. Working Pressure 5kg/cm² (Customer-provided)
Power7.5KW
Voltage/Frequency380V 50Hz
Automatic Feeding Device1 SetDouble Cylinder, 300kg Tensile Force
Spiral Cutter Shaft1 Set1 Cutting Edge
Overall Machine Size3500×3800×2200mm
Machine Weight3.5 Tons

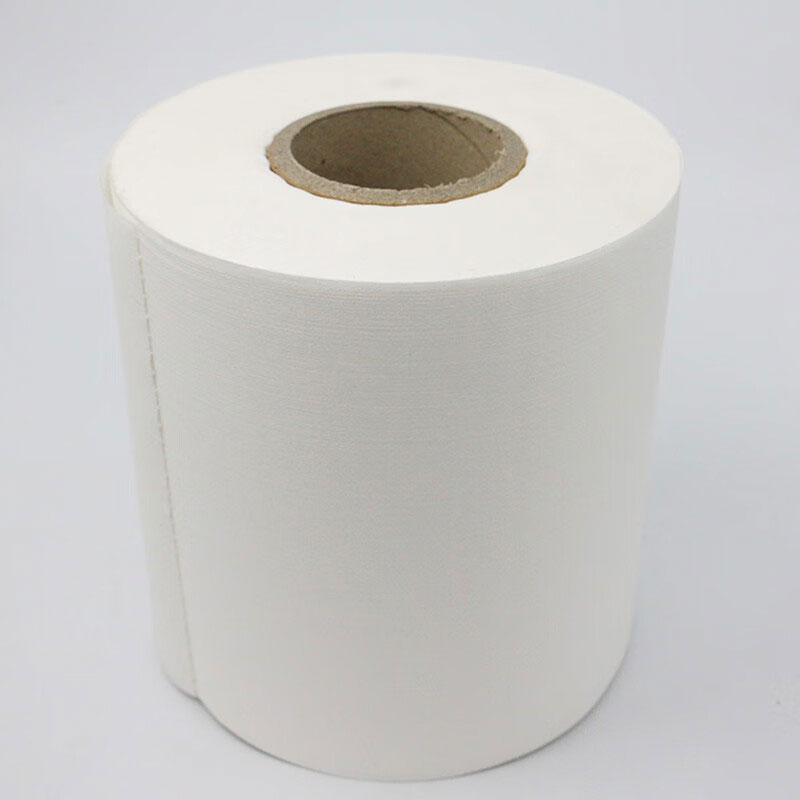

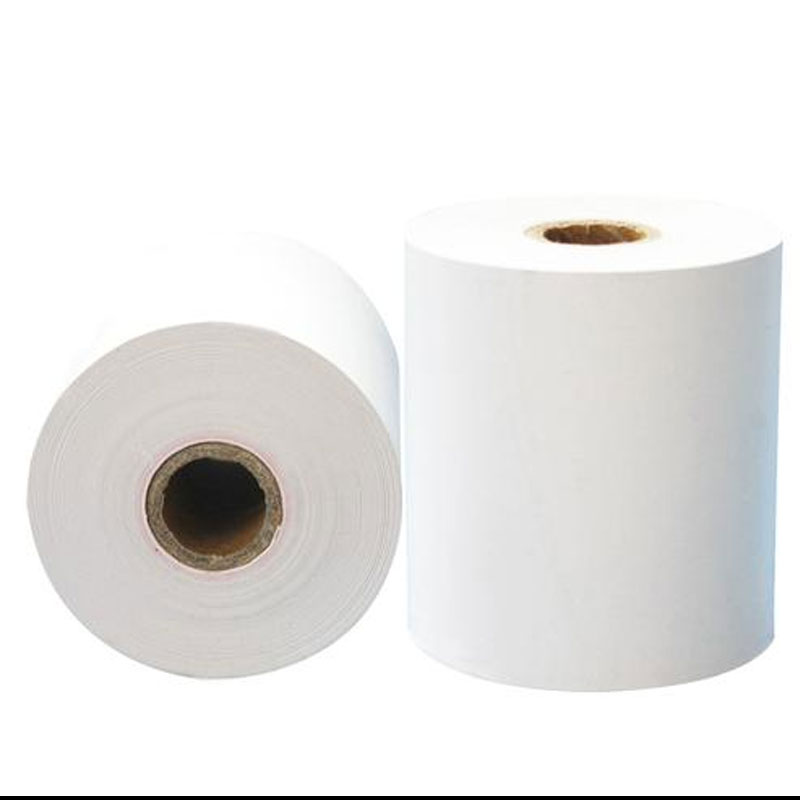

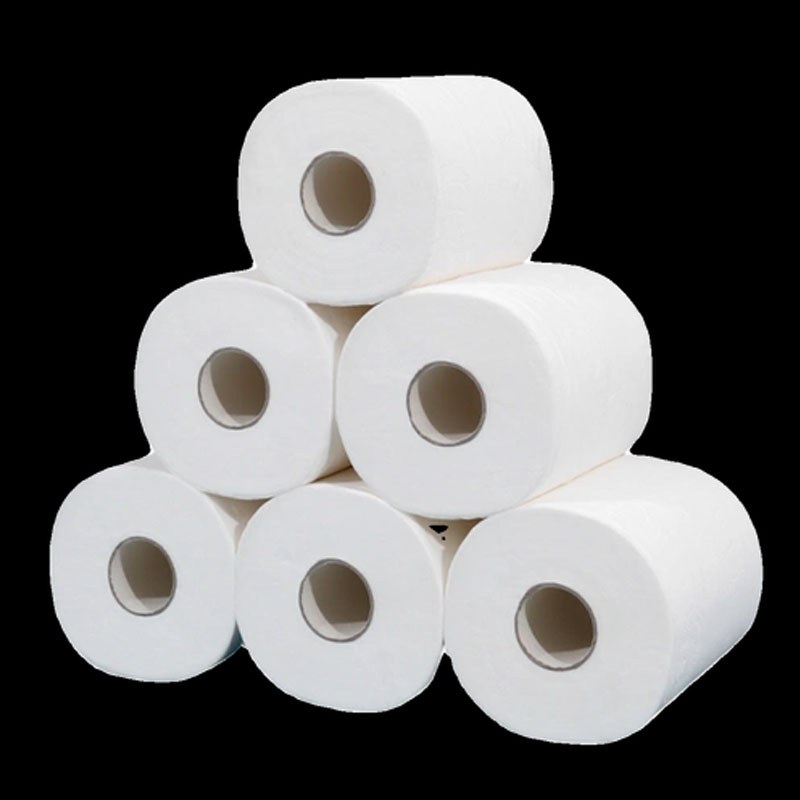

More photos
