Product Introduction

The LY-900 fully automatic high-speed compressed towel machine realizes automatic folding and forming of non-woven fabrics, with output of 150-200 pcs per minute and product pass rate over 98%. It adopts premium parts from Inovance, Schneider, Panasonic and other brands for stable long-term operation.

Its discharge outlet seamlessly connects with the automatic packaging machine. Two machines are interlocked with synchronous speed regulation to finish film wrapping, sealing and defective product auto-rejection.

The integrated line completes feeding, compressing and packaging in one continuous flow without manual transfer, greatly cutting labor cost. It is ideal for mass production of travel & hotel compressed towels with easy size switching, high efficiency and sanitary production.


Product Parameters

ItemParameter Details
Machine NameFully Automatic High-Speed Compressed Towel Production and Packaging Line
Machine ModelLY-900 Model
Production Speed8-cavity mold, 150-200 pieces per minute*The actual speed of other specifications depends on non-woven fabric material, gram weight and other factors. Molds need to be replaced for different finished product molding sizes.
Non-woven Fabric TypeBlended full-viscose spunlace non-woven fabric, plain weave / pearl embossed / EF embossed
Non-woven Fabric Gram Weight40-100 GSM
Unfolded Dimension L*W (mm)200-300 * 300-600
Molding SizeRound Φ45mm, Square 2840mm, Square 3050mm, etc. Custom sizes and embossed logos are available.
Folding ModeVertical C-shape, 2-3 layers; Horizontal half fold
Core Diameter of Fabric Roll76.2mm
Max Outer Diameter of Fabric Roll1200mm
Quality StandardPass rate ≥98%
Power Supply Requirement380V(±5%) / 50Hz, 3PH+N+PE, 15kVA
Hydraulic Oil Requirement200L hydraulic oil (prepared by buyer)
Compressed Air6 bar, 600LPM
Machine Dimension (LWH)4800×1700×2000 mm
Machine Weight3000Kg

Host Configuration Table

No.NameBrand
1Motion ControllerInovance
2HMI Human Machine InterfaceWeinview
3Servo MotorInovance
4Web Guiding DeviseEuntes
5InverterPanasonic (Japan)
6Switching Power SupplyMean Well (Taiwan, China)
7Low Voltage ComponentsSchneider Electric (France)
8Proximity SwitchSICK (Germany) & others
9Photoelectric SensorSICK (Germany)
10Timing BeltFULO, JIEBAO & others
11BearingNSK (Japan) & others
12Bottom Fabric Cutting BladeAluminum Steel Blade
13Upper Fabric Cutting BladeAlloy Sharp Steel
14Worm Gear ReducerTAIYAN
15Pneumatic ComponentsAirtac (Taiwan, China)
16Linear Guide + SliderHIWIN (Taiwan, China)
17Planetary ReducerSHIMPO (Japan)


Packaging Machine Configuration List

No.NameModelBrandQty
1Push Button5
2Solid State RelayHuanan1
3Solid State RelayHuanan1
4Solid State RelayHuanan1
5Servo Driver630-850WcanInovance1
6Servo Driver630-400WcanInovance6
7Switching Power SupplyS-100-24Mean Well1
8CPU ModuleH3u-3232MTInovance1
9Touch ScreenTK6071IQWeinview1
10Servo DriverMD200-400w-canInovance1
11InverterMD200-400w-canInovance1
12InverterMD200-400w-canInovance1
13Servo MotorCutting Blade MotorInovance1
14Servo MotorFilm Feeding MotorInovance1
15Servo MotorMaterial Gripper MotorInovance1
16Servo Motor1-stage Arrangement MotorInovance1
17Servo Motor2-stage Arrangement MotorInovance1
18Servo Motor3-stage Arrangement MotorInovance1
19Servo Motor4-stage Arrangement MotorInovance1
20Servo MotorIndependent Bridge Arrangement MotorSelf-equipped1
21Servo MotorOuter Rotary Disc MotorSelf-equipped1
22Servo MotorInner Rotary Disc MotorSelf-equipped1
23Power SwitchHZ12Feng'an1
24RelayMY2NJSchneider3
25Air Circuit BreakerSchneider10
26Photoelectric SwitchSelf-equipped1
27Proximity SwitchSelf-equipped1
28Proximity SwitchSelf-equipped1
29Photoelectric SensorCX-442Panasonic6
30Differential ConverterLNSTHY-4H1
31Temperature ControllerNBG-3400V-1Yatai3
32Heating Rod7HFM32


Product Drawings

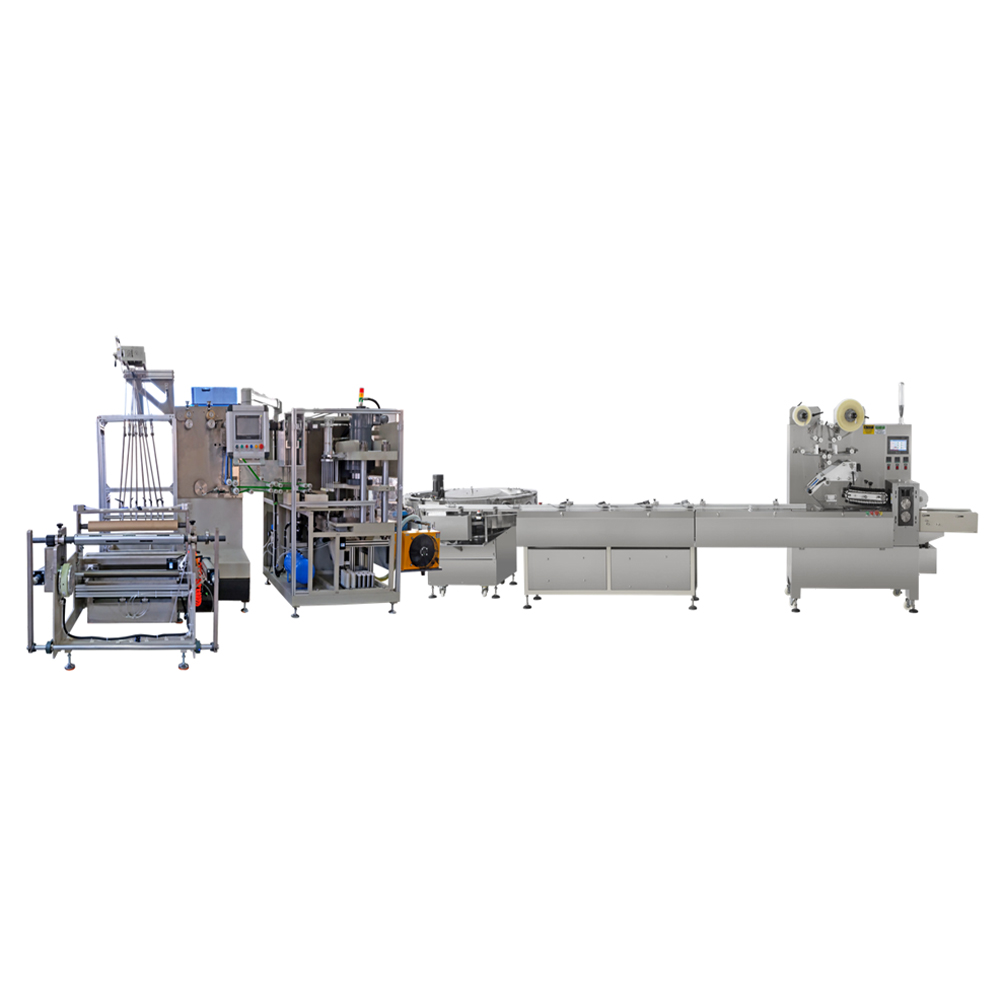

Fully Automatic High-Speed ​​Compressed Towel Production and Packaging Line
