Product Introduction
This machine is officially named "Fully Automatic Disposable Slippers Production Machine." It performs a complete, fully automated production process from raw material feeding to finished product output. This includes automated processes such as material feeding, upper fabric cutting, folding, heat sealing, foam cutting, molding, and final product trimming and packaging. It operates reliably, has high output, requires minimal manpower, and is easy to maintain.
Product Parameters
| Model | LY-N016 |

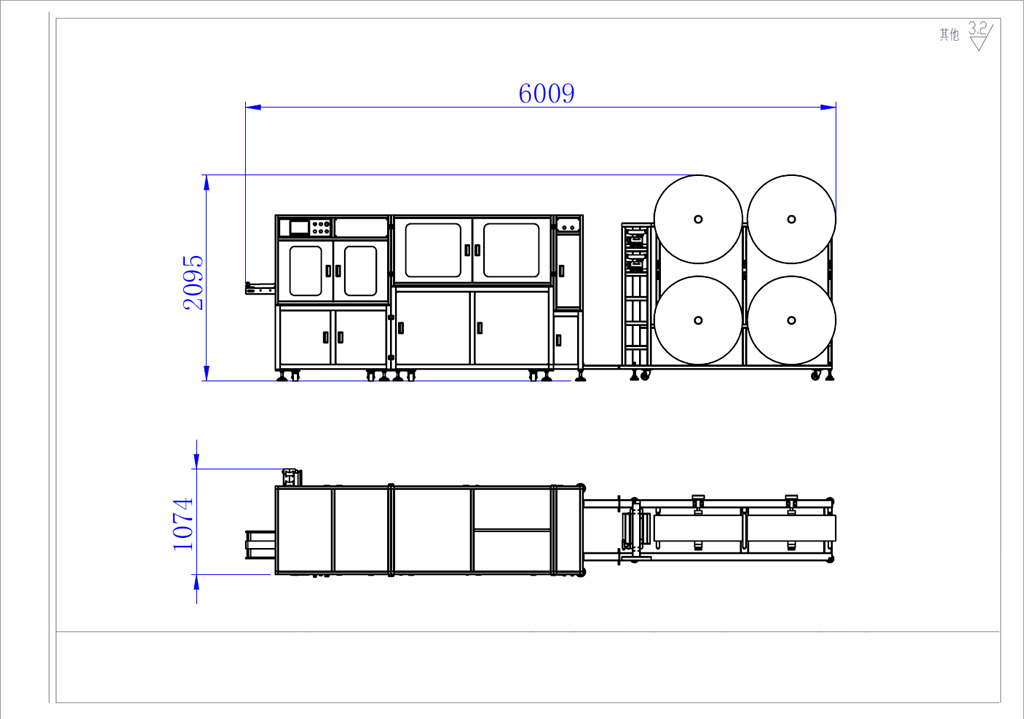

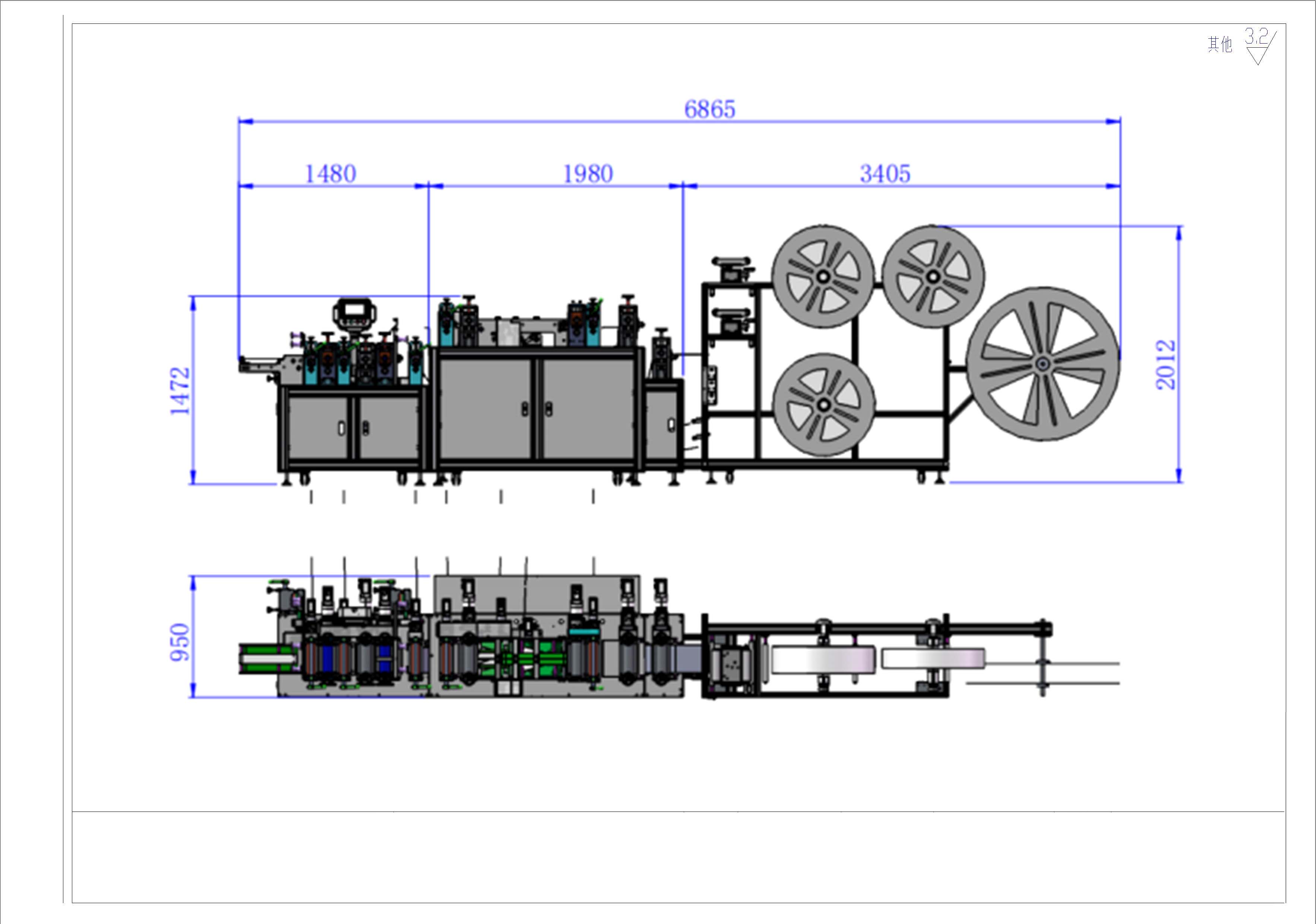

| Dimensions | 6009*1074*2095mm |
Output power
| 10Kw |
| Speed | 80-100pcs/min |
| Air pressure | 0.6-0.8 mpa |
| Weight | 1200KG |
| Power supply | Ac220/380v 50/60hz |
Main Configuration of the Equipment
| Machine Name/Model | Glue-Spraying Slipper Machine |
|---|
| Material Property | Two layers of fabric, one layer of EPE (Expandable Polyethylene) |
| Frame Property | Aluminum Profile |
| Roller Cutter Property | DC53 Heat Treatment |
| Mold Base Property | 45# Steel Surface Treatment |
| Transmission Property | Servo Motor |
| Display Screen | Display & Control Touch Screen |
| Control System | Servo control system, servo motor, ARISE deviation correction system, touch screen digital setting |
Equipment Configuration Table
Material Selection for Mechanical Parts
| Serial No. | Part | Property |
|---|
| 1 | Frame Part | Aluminum Profile |
| 2 | Transmission Parts | 45# Steel |
| 3. | Die Cutting Mold | Imported DC53 |
Electrical Parts
| Serial No. | Name | Model | Quantity (Based on Product) | Brand | Serial No. | Name | Model | Brand | Quantity |
|---|
| 1. | PLC | - | 1 | Inovance | 8. | Switching Power Supply | - | Taiwan Mean Well | X |
| 2. | Servo Motor | 0.75KW | 5 | Inovance | 9. | Control Button | - | Japan Idec | X |
| 3. | Servo Driver | 0.4KW | 8 | Inovance | 10 | Cutting Knife | - | Huidong | 1 |
| 4. | Touch Screen | - | 1 | Inovance | 11 | Glue-Spraying System | - | - | 1 |
| 5. | Relay | 24V | X | Omron | 12. | Cooling System | - | - | 1 |
| 6. | Ultrasonic System | 15K 2600W | 2 | Hongri | 14. | Waste Roll Collector | - | - | 2 |
| 7. | Ultrasonic System | 15K 4200W | 1 | Hongri | - | - |
|
|
|

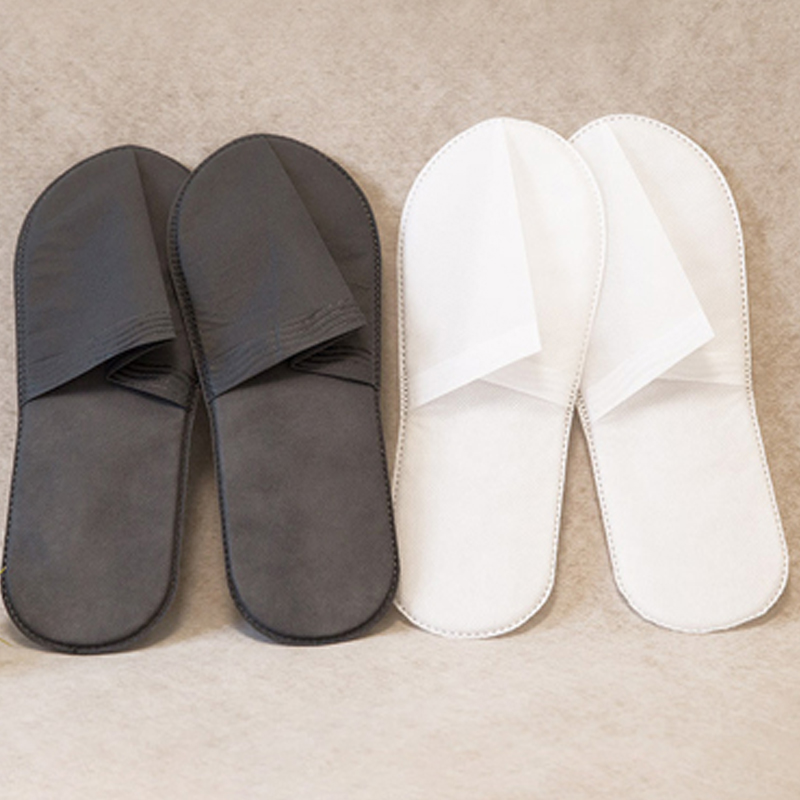

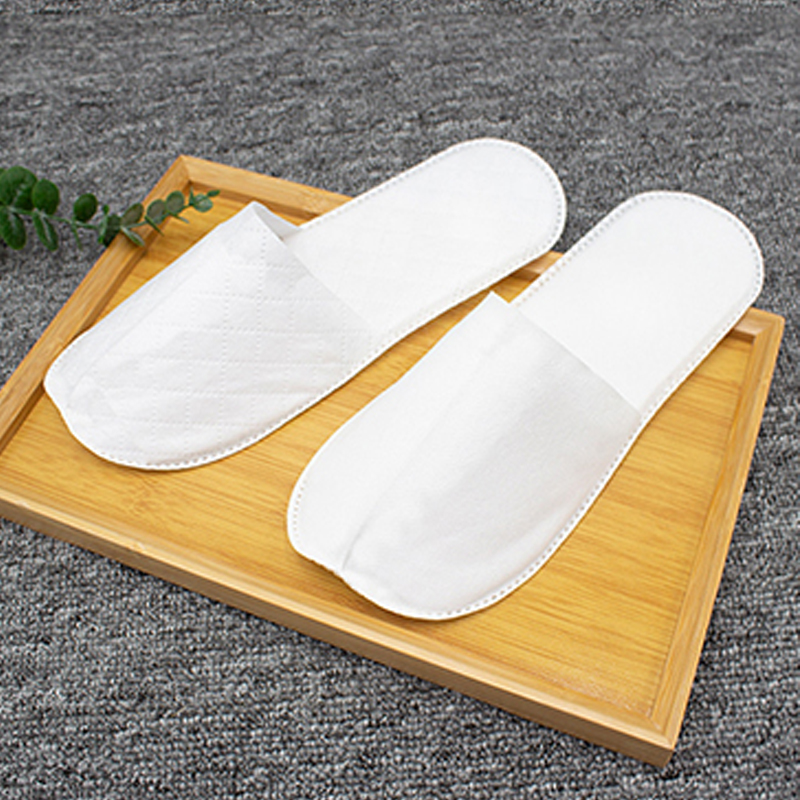

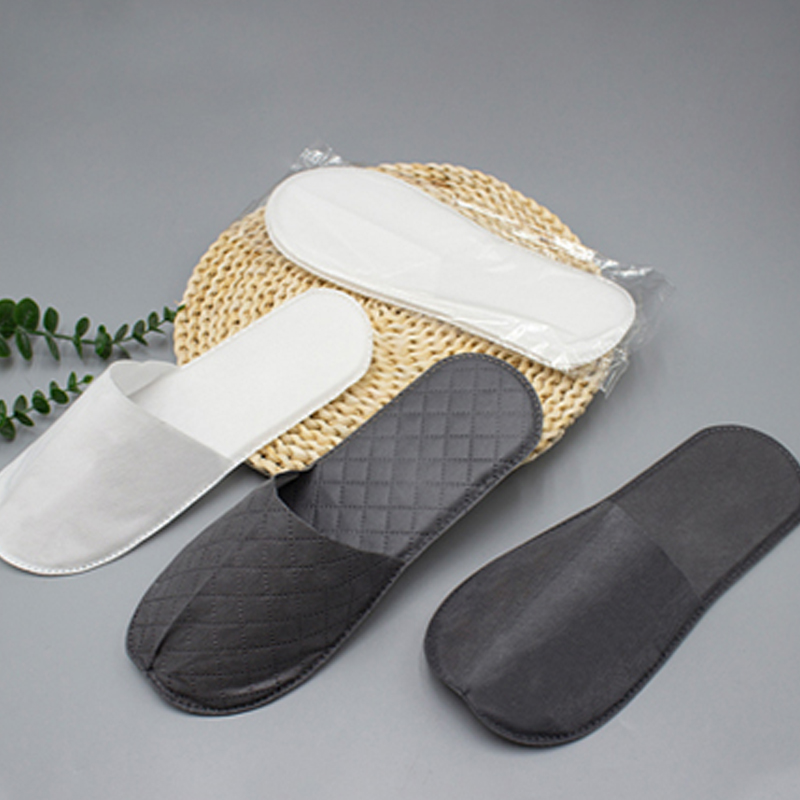

Slipper Cost Analysis Sheet (For Reference Only)
| No. | Layer | Material Name | Width(mm) | weight g/m² | g/One Ton | Price/ton | Price/gram | Length mm | Width mm | One Slipper Need g/pc | Can make Quantity/ton (pairs) | CBM/Ton | Cost/pair of slipper | Cost in Total | Labor Cost | Total Cost of a pair |
|---|
| 1 | 1st Layer--Vamp | Needle Punched Cotton | 220 | 220 | 1000000 | 10000 | 0.01 | 190 | 220 | 9.20 | 54371 | 5.5 Ton/40'HQ;1 Ton≈12 CBM | 0.18 |
|
|
|
| 2 | 2nd Layer--Sole Top | Needle Punched Cotton | 130 | 130 | 1000000 | 10000 | 0.01 | 300 | 130 | 5.07 | 98619 | 8.5 Ton/40'HQ; 1 Ton ≈4.7 CBM | 0.10 |
|
|
|
| 3 | 3rd Layer--Sole Bottom (Thickness 7mm) | IXPE Foam | Thickness-7mm | 400 | 1000000 | 14000 | 0.014 | 300 | 130 | 15.60 | 32051 |
| 0.44 | 0.78 | 90% | 0.87 |
| 3 | 3rd Layer--Sole Bottom (Thickness 6mm) | IXPE Foam | Thickness-6mm | 340 | 1000000 | 13000 | 0.013 | 300 | 130 | 13.26 | 37707 |
| 0.34 | 0.69 | 90% | 0.77 |
| 3 | 3rd Layer--Sole Bottom (Thickness 5mm) | IXPE Foam | Thickness-5mm | 285 | 1000000 | 13000 | 0.013 | 300 | 130 | 11.12 | 44984 | 0.75*0.75*0.14m=0.079m3/roll 1000KG/1.2KG/roll=833roll/Ton 0.079*833=65m3/ton | 0.29 | 0.51 | 90% | 0.57 |
| 4 | 4th Layer -- Glue | Glue |
|
|
|
|
|
|
|
|
|
| 0.06 |
|
|
|
