Fish-shaped mask machine

Fully automatic fish-shaped mask head nail welding valve machine Operating Instruction

Automatic fish mask nail welding valve is a fully automatic machine for the production of folding mask production line, the use of ultrasonic technology, 3 ~ 6 layers of PP non-woven fabric, activated carbon filter and filter materials and other parts for welding. The whole set of equipment through non-woven fabric, welding, folding forming, rolling cutting, conveying, welding valve, ear belt nail, slicing and other integrated automatic folding production process, can process 3M 9001, 9002 and other folding masks. According to the product needs of the selected raw materials can be produced to ···

TEL MSG

Details Parameters Sample Company

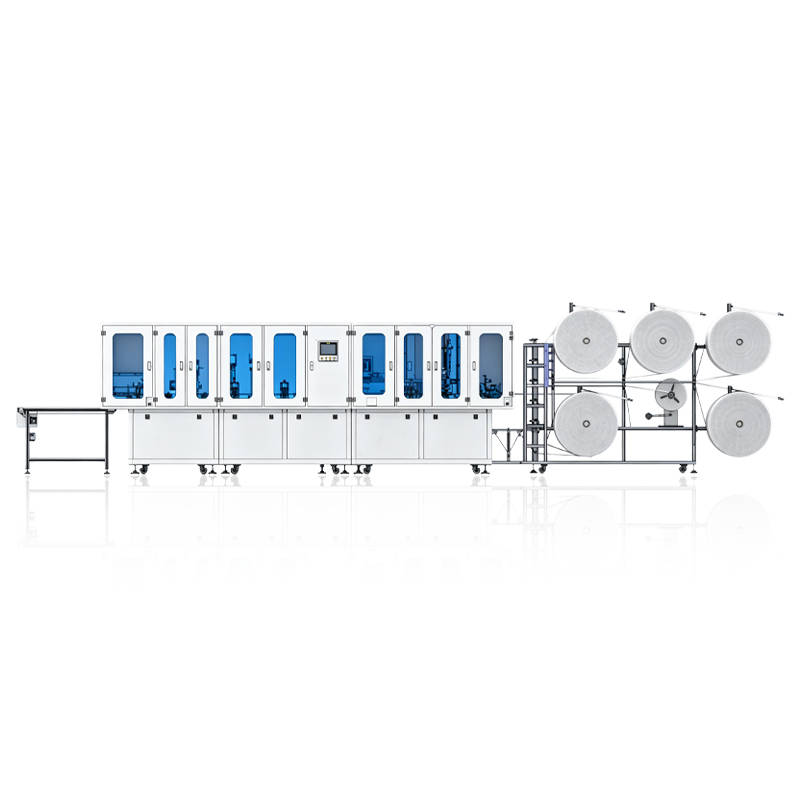

Product Introduction

Automatic fish mask nail welding valve is a fully automatic machine for the production of folding mask production line, the use of ultrasonic technology, 3 ~ 6 layers of PP non-woven fabric, activated carbon filter and filter materials and other parts for welding. The whole set of equipment through non-woven fabric, welding, folding forming, rolling cutting, conveying, welding valve, ear belt nail, slicing and other integrated automatic folding production process, can process 3M 9001, 9002 and other folding masks. According to the product needs of the selected raw materials can be produced to meet the different standards such as FFP2, FFP3, N95 masks, automatic production of finished products.

Product Parameters

Model

LY-KY08A

Motor power

10KW

Power Supply

220VAC/ 60Hz

kPa

0.6~0.8Mpa

Production speed

20-25pcs/min

Ultrasonic system

15KHZ×1

15KHZ×1

20KHz×1


(L×W×H mm)

9350*1260*2100

Weight

2.5T


Main part

Serial number

Part name

QUANTITY



       Remarks



1

Non-woven fabric/melt-blown fabric roll mechanism







2set


2

Nose bridge feeding mechanism

1 set


3

Mask pattern welding mechanism

1 set


4

Mask folding molding mechanism

1 set




5

Attach sponge strip mechanism





1 set




6

Mask folding welding mechanism





1 set


7

Valve body feeding welding mechanism

1 set


8

Mask cutting mechanism

1 set


9

Ear strap material pinning mechanism

1 set


10

Finished product discharge mechanism

1 set


11

Operating System



1 set


12

Operator panel



1 set


Main electrical component

serial number

Project

Remarks


1

Cylinder

AirTAC


2

YV



AirTAC


3

Servo motor

Kymmene


4

PLC

Kymmene




5

Bearings

America First




6

Rail line

HIWIN


7

Touch Screen



Kymmene




8

Breaker



CHINT




9

Buttons





Applicable incoming specifications (for reference only):





Project

Gram heavy

Width

(mm)

Coil outside diameter(mm)

Inside diameter of barrel

(mm)

Weight

Cloth



25-50

265-285

Φ650

Φ76.2

Max 15kg

Bridge of nose

1

3-5





Earloop band

2  bag

3-5

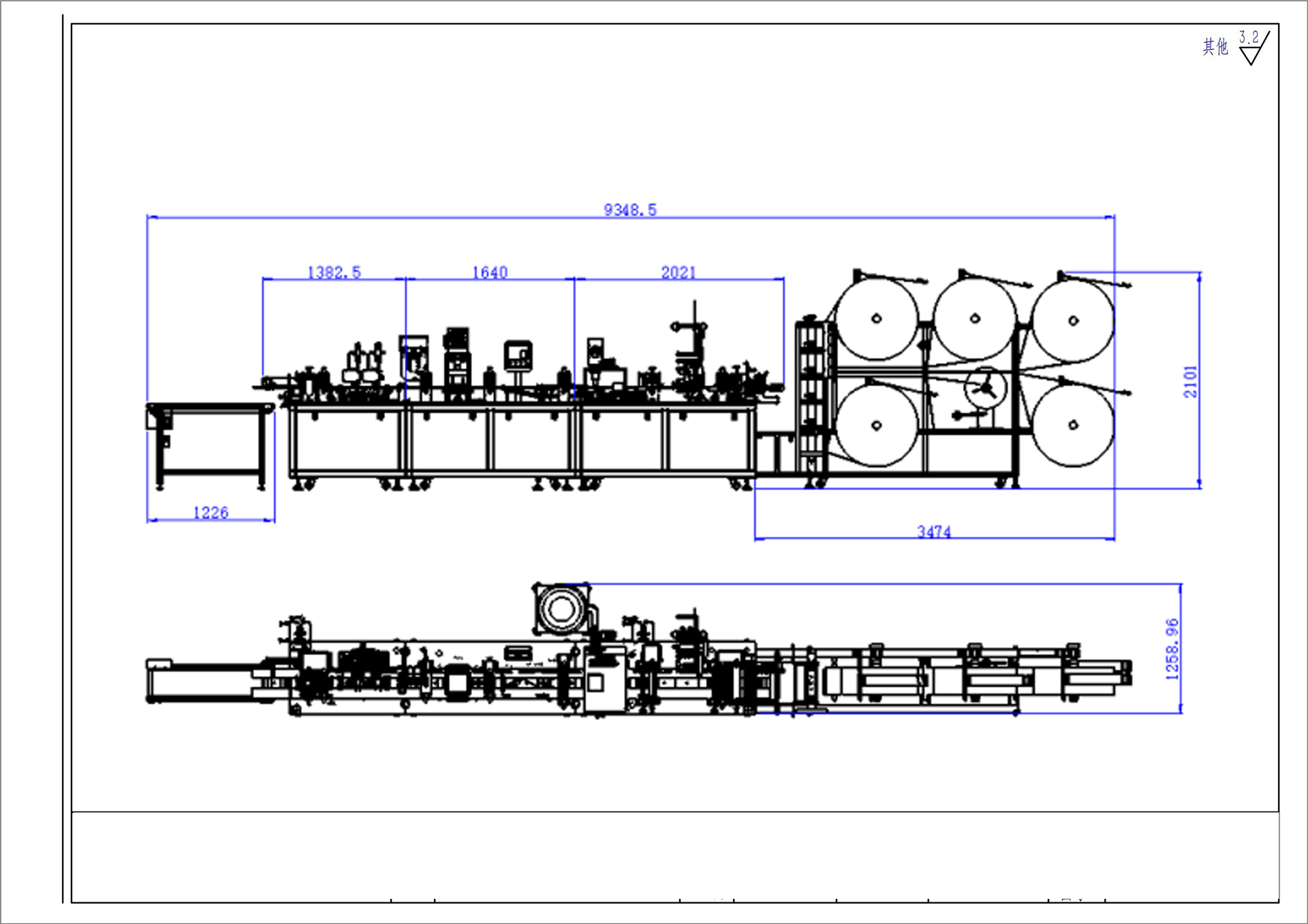

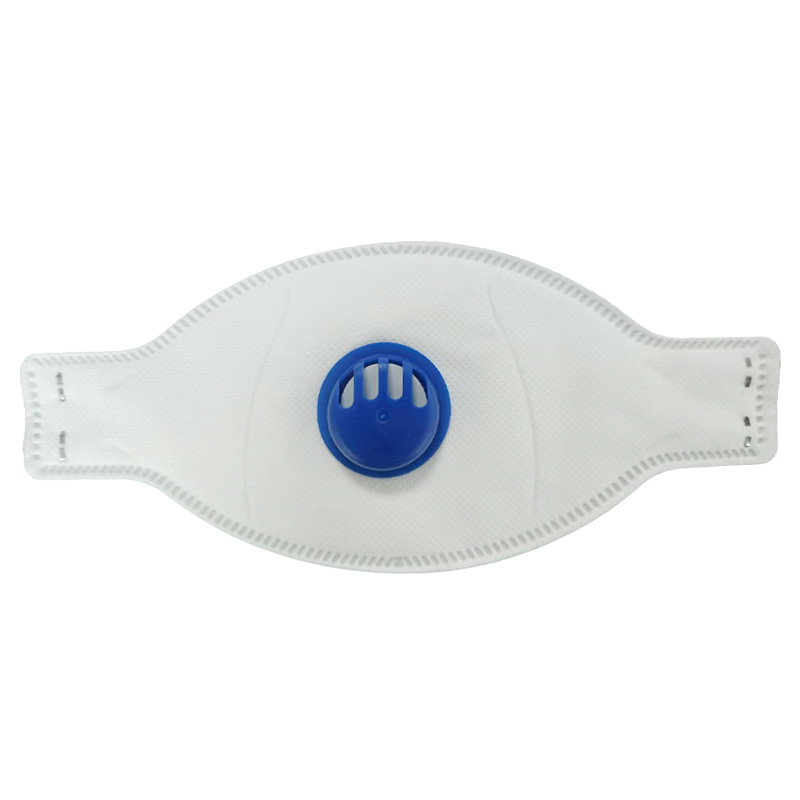

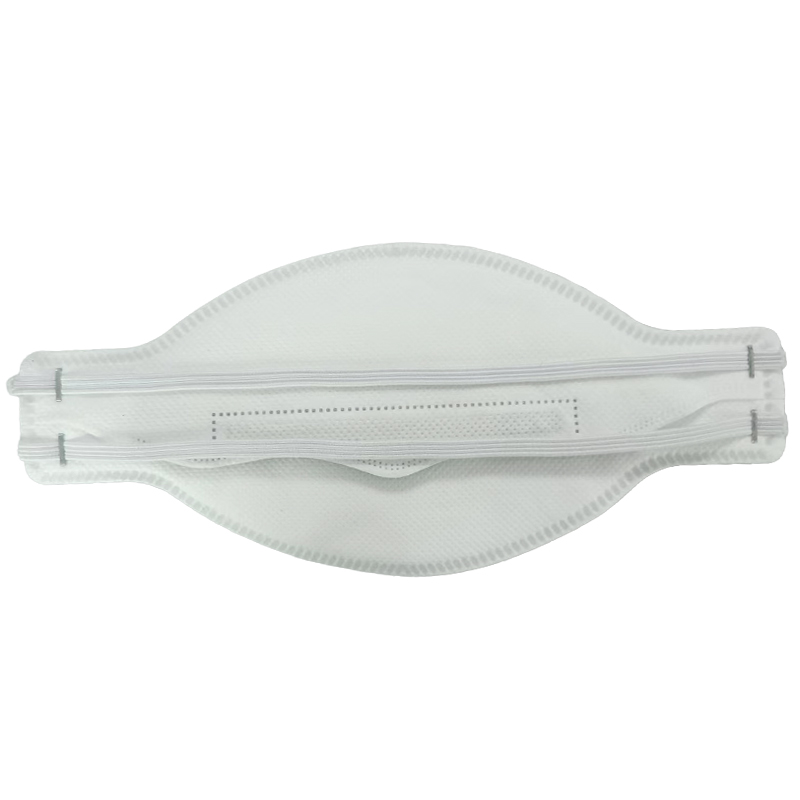

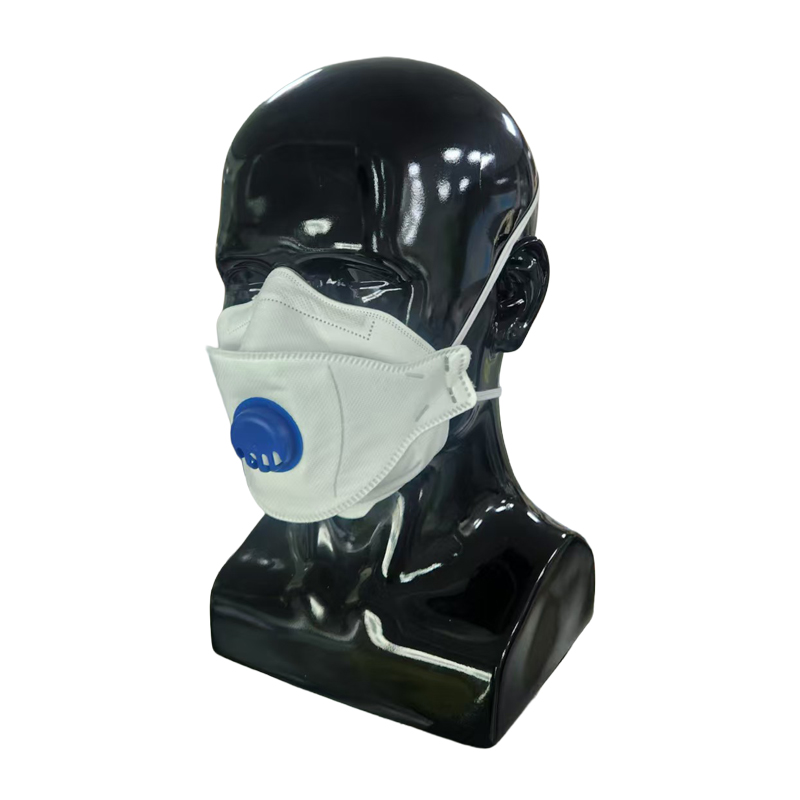

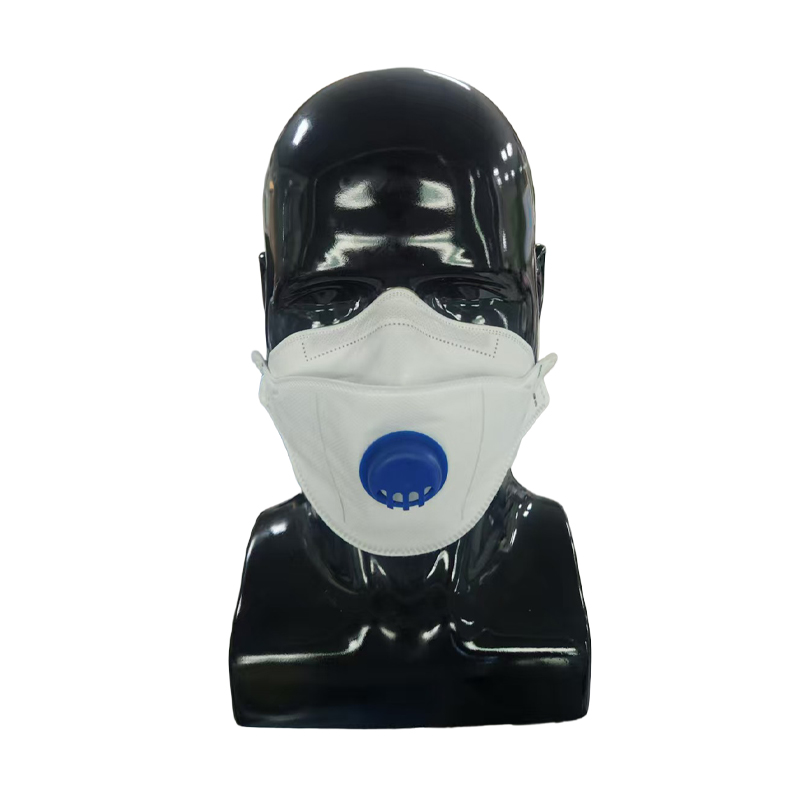

Product Drawings
