Cup-shaped mask machine

Fully automatic cup-shaped mask machine

This machine is fully automated from raw materials to finished products: jacket non-woven fabric, middle meltblown cloth, inner cotton shaping and cup melt cutting, mask nose bridge strip, pad printing, elastic band automatic spot welding, automatic sticking sponge strips, breathing valve punching, automatic welding valve, fully automated production of cup masks.

TEL MSG

Details Parameters Sample Company

Product Introduction

This machine is fully automated from raw materials to finished products: jacket non-woven fabric, middle meltblown cloth, inner cotton shaping and cup melt cutting, mask nose bridge strip, pad printing, elastic band automatic spot welding, automatic sticking sponge strips, breathing valve punching, automatic welding valve, fully automated production of cup masks.


Product Parameters

ModelLY-KBL01
Dimensions10900*2100*2250mm
Output power
20Kw
Speed20-25pcs/min
Air pressure0.6-0.8 mpa
Weight5000KG
Power supplyAc220v 50/60hz

Raw material list of auto cup mask machine,as shown below:

No.

Name

gsm

Width

Remark

1

Surface layer non-woven fabric

25

220 mm


2

Filter layer melt-blown fabric

25-50

220 mm


3

Bottom layer needle-punched cotton

220

230 mm


4

Nose wire


5mm


5

Ear-loop


5mm

Flat

Size of used raw material list,as shown below:

No

Name

GSM

Width

Finished Size

1

Surface layer non-woven fabric

25

220X170 mm







140x120mm

2

Filter layer melt-blown fabric

25-50

220 X170 mm

3

Bottom layer needle-punched cotton

220

230 X170 mm

4

Nose wire


90mm

5

Ear-loop


260-300mm,300-340mm



Structure List of Automatic Cup Mask Machine

No.

Name

Quantity

Unit

Remark

1

Rack

2

Series


2

Outer layer folding group

1

Series


3

Outer layer welding and cutting group

1

Series


4

Outer layer expand and moving group

1

Series


5

Inner layer setting group

1

Series


6

Outer and inner layer spot welding positioning group

1

Series


7

Outer and inner layer welding group

1

Series


8

Punching and cutting group

1

Series


9

Moving group

1

Series


10

Nose wire bonding group

1

Series


11

Pad printing group

1

Series


12

Ear-loop welding group

1

Series


13

punching (optional)

1

Series


14

Valve installation group (optional)

1

Series


15

Deliver finished product group

1

Series


Components list of Automatic cup mask machineAs shown below

No

Name

Brand

Remark

1

Cylinder

AirTAC


2

Solenoid Valve

AirTAC


3

Servo Motor

Delta


4

PLC

Mitsubishi


5

Module

SKK


6

Linear guide

Hiwin


7

Touch Screen

Weinview


8

Circuit breaker

CHNT

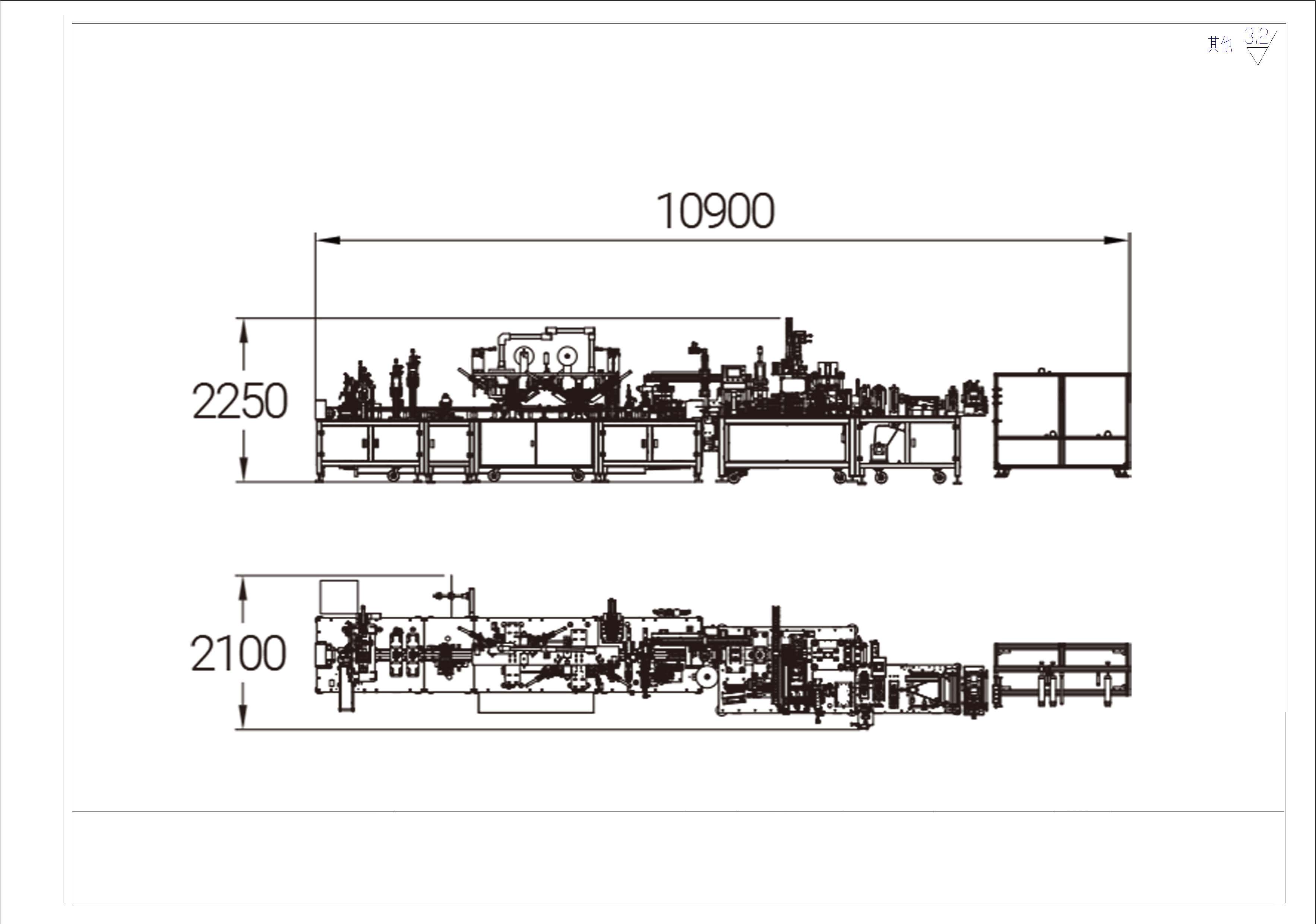

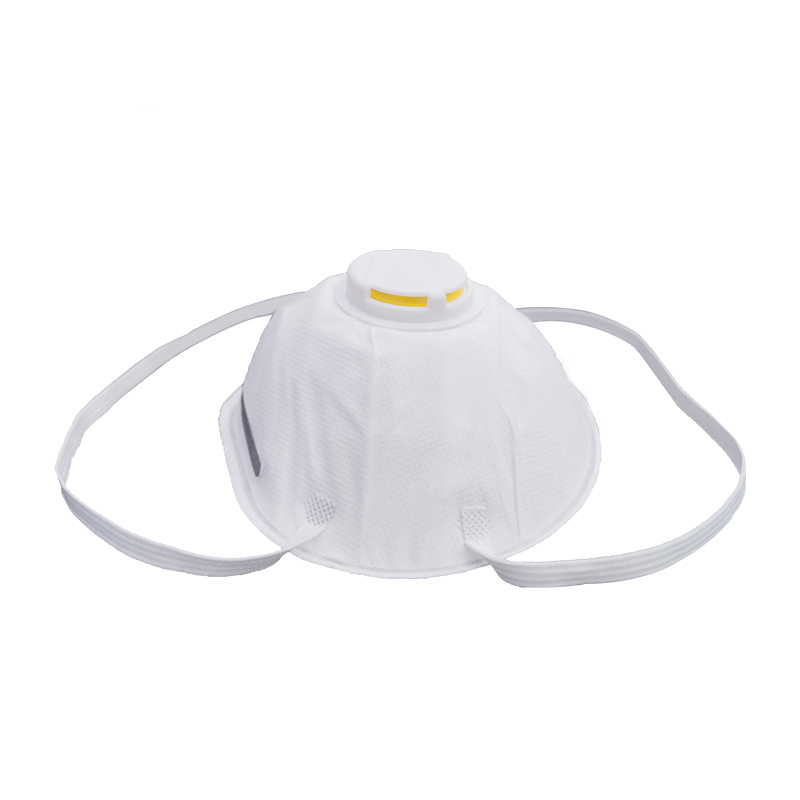

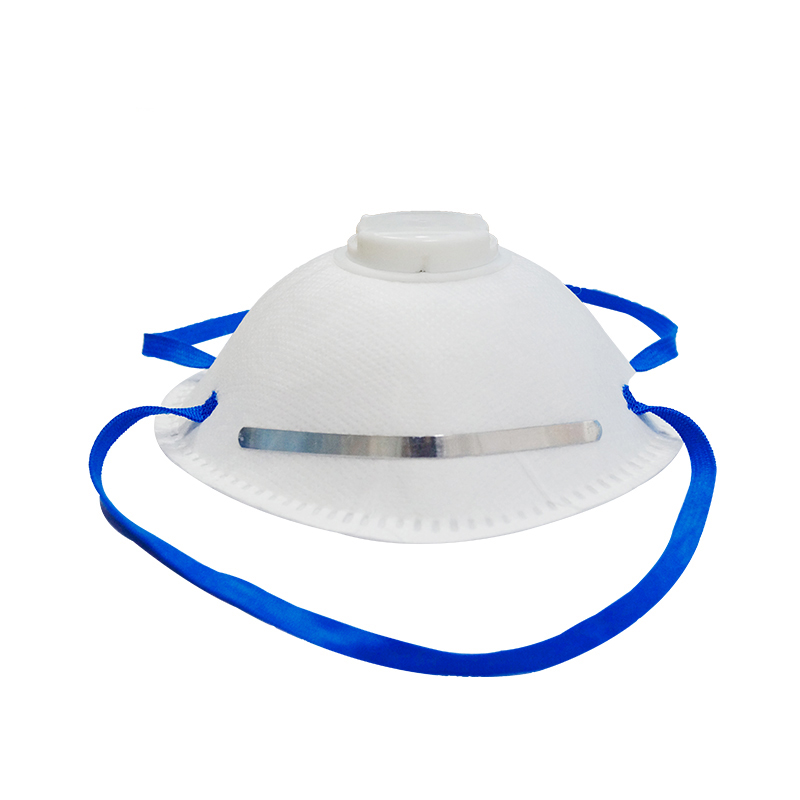

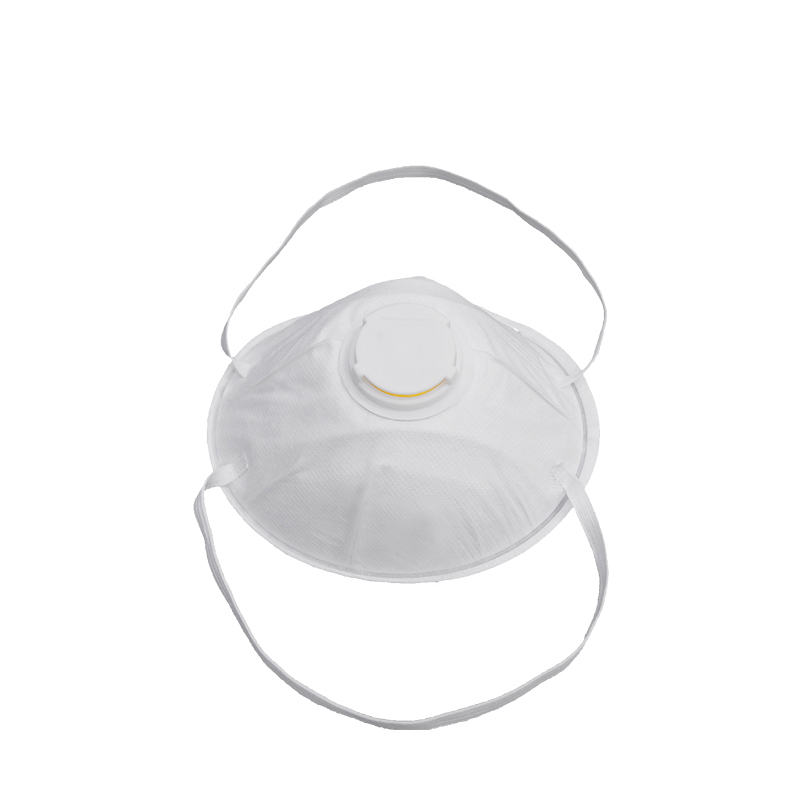

Product Drawings

Fully automatic cup-shaped mask machine

More photos

Factory Introduction

Loy Technology Co., Ltd.

Company Profile

Loy Technology Co., Ltd.

Loy Technology Co., Ltd. We specialize in the research, development, manufacturing, and sales of intelligent automation equipment, with years of experience in the industry. Adhering to the principle of "Technology + Expertise + Service," and leveraging a team with over 20 years of experience, we have established a strong presence in the field of custom-made automation for non-woven products.Our products include mask machines, automated equipment for disposable non-woven products and respiratory protective equipment, packaging machines, and tissue machines, boasting leading technology and reliable quality. We collaborate with leading brands such as Dasheng and Sanqi, and our products are exported to Korea, Europe, and the United States, earning widespread customer recognition.
