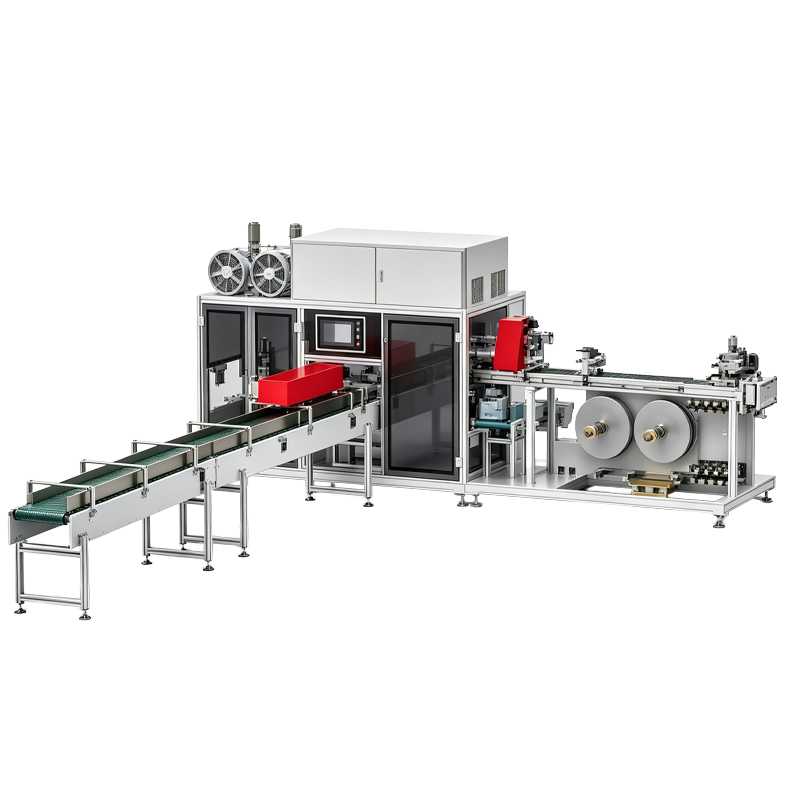

Bottom suction paperpackaging machine

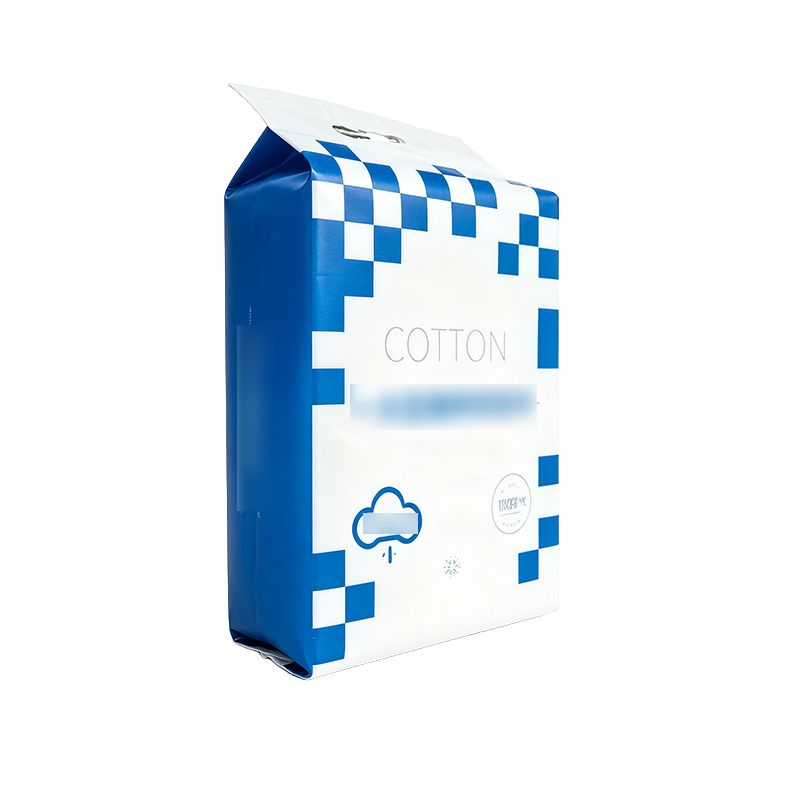

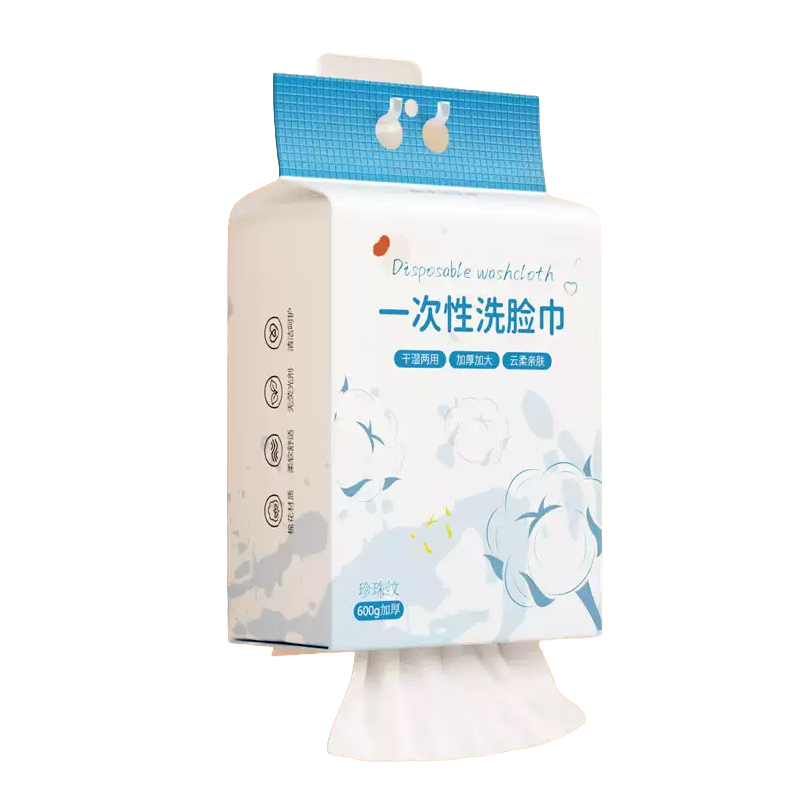

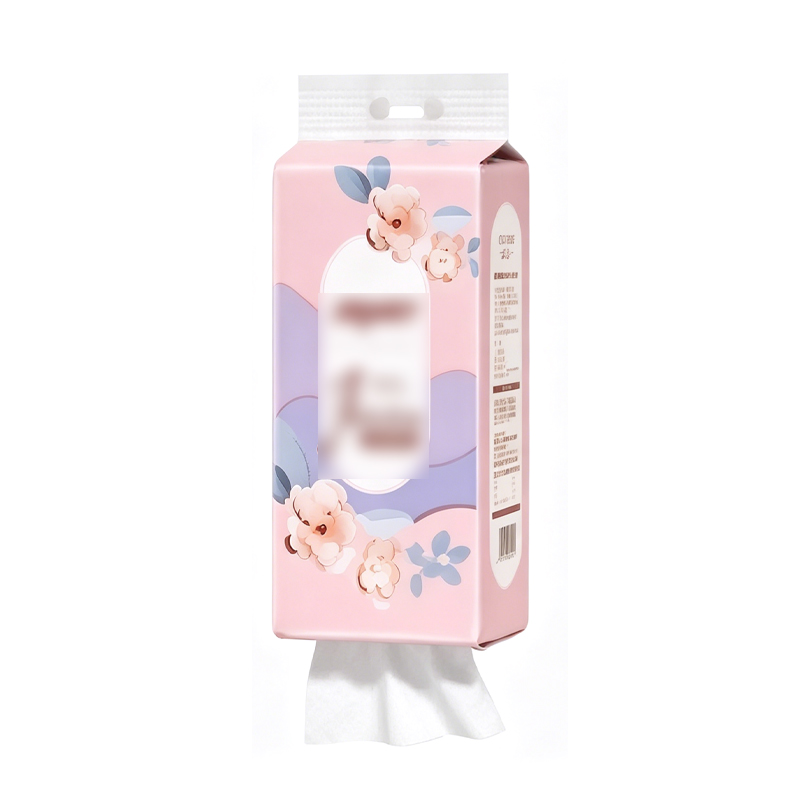

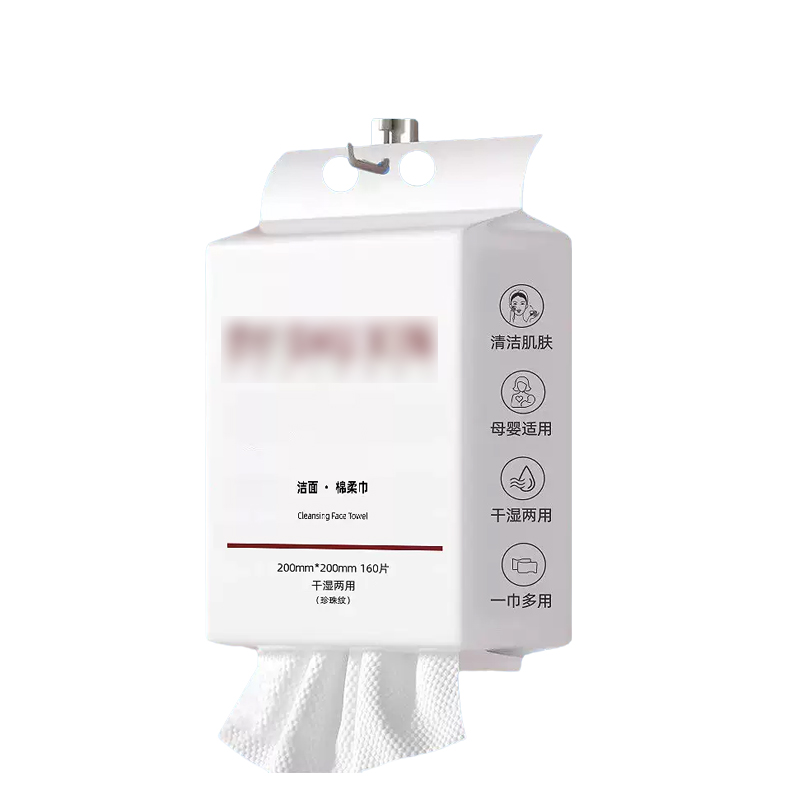

● This high-speed bottom-pull packaging machine is suitable for the automated packaging of bottom-pull tissue packs, soft cotton wipes, kitchen paper, hand towels, and similar products.

● The machine integrates 12 sets of servo control systems and 3 sets of variable frequency drive (VFD) systems. It features high-precision photoelectric tracking, a high-definition human-machine interface display, rapid response speeds, and a high degree of automation. The system operates with exceptional stability and simplicity, boasting a novel design that allows the machine to maintain a steady operating speed of 70–80 packs per minute.

● It features a large-capacity, four-station bag magazine design (two in use, two in standby), allowing for bag replenishment without halting production—thereby ensuring maximum production efficiency. Utilizing a pre-made bag packaging method, the system employs negative-pressure bag feeding for precise positioning and includes functions such as automatic alignment correction, rejection of defective bags, and a "no bag, no product push" safety mechanism. The product collation method is simple and reliable, making size changeovers both convenient and rapid.

● The machine utilizes constant-temperature sealing and negative-pressure suction forming to create aesthetically pleasing corner folds and flat, uniform seals.

● The entire machine is equipped with comprehensive pneumatic and electrical safety protection features. With its clean, minimalist design and compact structure, it is suitable for integration into various production line layouts and accommodates a wide range of packaging applications.

Configuration Table
