Blister Packing Machine

LY-330 Toothbrush Packaging Machine

LY-330 is Suitable for full-cover seal blister card packaging, such as daily commodity(toothbrush) , small hardware, stationery, auto part (brake pads, spark plugs), cosmetics (lipsticks),toys (small cars), food etc.Machine automatic forming blister, dropping paper card, heat sealing, cutting, autom

TEL MSG

Details Parameters Sample Company

Product Introduction

LY-330 is Suitable for full-cover seal blister card packaging, such as daily commodity(toothbrush) , small hardware, stationery, auto part (brake pads, spark plugs), cosmetics (lipsticks),toys (small cars), food etc.
Machine automatic forming blister, dropping paper card, heat sealing, cutting, automatic product output and residual material recovery.
Machine is equipped with an accurate temperature control module, PVC shortage alarm, auto stop for insufficient air pressure ,auto warning for damaged electrical parts.
Machine use human-machine interface and PLC control system, and equipped with counting, starting password, fault reminder, maintenance reminder and other functions.

Product Parameters

Production speed8-13 times/min
Max forming area300mm*250mm
Max forming depth40mm
Forming heating power3kw(*2)
Heat sealing power3.5kw
Total power13kw
Air consumption≥0.5m³/min
Air Pressure0.5-0.8mpa
Packing material(PVC)(PET)thickness 0.15mm-0.5mm
Max paper dimension320mm*255mm*0.5mm
Total Weight3300kg
Machine dimension(L*W*H)6200mm*800mm*1880mm


LY-330 Main Electrical Configuration

No.NameManufacturer/Brand
1Programmable Logic Controller (PLC)Omron
2Cylinder (Solenoid Valve) (Filter)AIRTAC
3EncoderOmron
4Emergency Stop ButtonSchneider
5Servo MotorDelta / Inovance
6Color Touch ScreenWeintek
7Circuit BreakerSchneider
8Traction MotorDelta / Inovance
9Temperature Control ModuleDelta (Taiwan)
10SensorOmron
11Ball ScrewTHK/HIWIN
12BearingHarbin

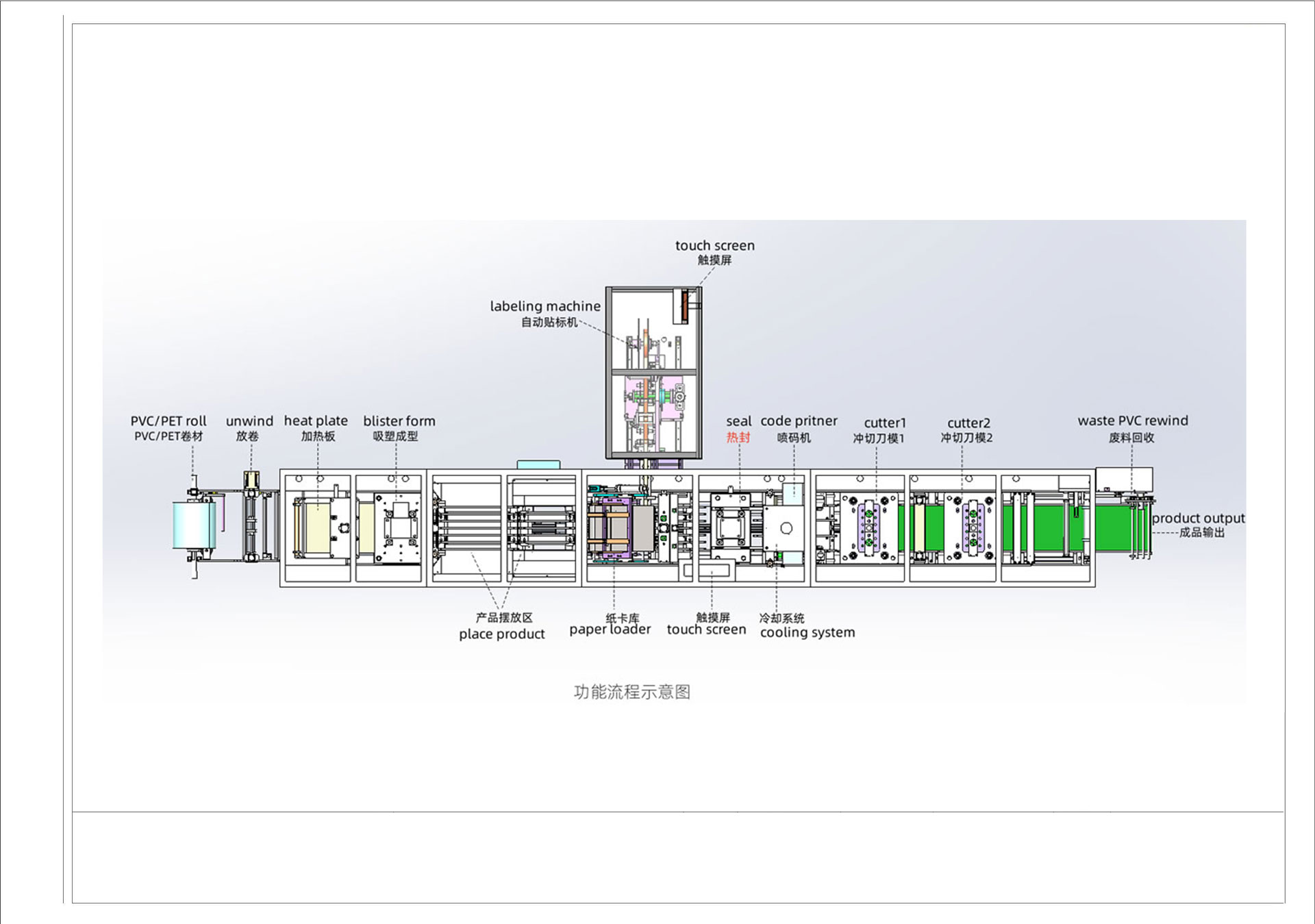

Product Drawings

LY-330  Toothbrush Packaging Machine

More photos
