Targeting the pain points of different industries—such as the labor protection industry's stringent requirements for product protection performance, the medical industry's pursuit of sterile production, and the hotel and tourism industry's need to balance cost and quality—the solution integrates advanced automation technologies, intelligent control systems, and flexible production models to achieve the multiple goals of improving production efficiency, stabilizing product quality, and optimizing labor costs. This helps companies build core advantages in industry competition and promotes the industry's upgrade towards efficiency, standardization, and intelligence.
More +

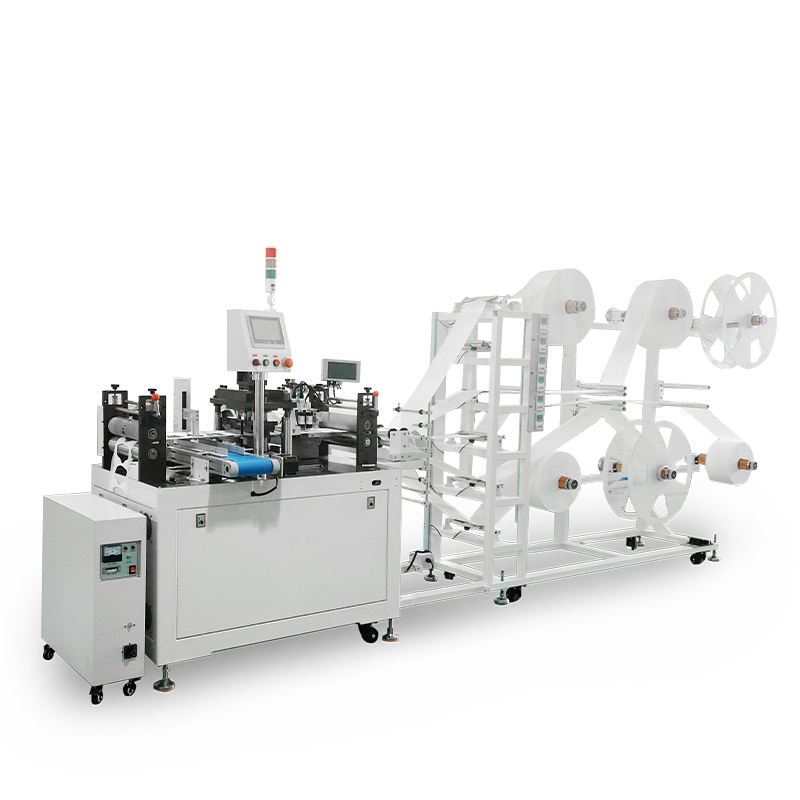

1. This filter cotton punching and cutting machine (follower model) uses servo-driven material feeding, ensuring more stable and uniform material delivery and guaranteeing the precision of the finished product.
2. The filter cotton punching and cutting machine (follower model) employs an integrated welding and cutting method to cut filter cotton products quickly, neatly, and aesthetically pleasingly.
3. PLC + servo control provides clear visibility of all production parameters and easy operation.
4. The equipment uses servo control to control the welding and cutting force, and parameters are easily adjustable.
5. Fully automated operation with comprehensive functions, meeting various customer requirements for filter cotton. It saves labor, has high production efficiency, stable operation, low noise, and can work continuously.
6. The equipment is equipped with an automatic alarm device. Alarm lights will flash and sound immediately when a fault occurs, and the fault will be displayed on the screen.
7. Automatic fault indication: When a fault occurs, the location of the fault will be displayed on the screen.
8. Historical fault records allow users to review past faults and identify the main problems, providing a basis for equipment maintenance and future improvements.
9. Automatic material shortage shutdown: When raw materials are insufficient, the entire line will stop, the warning light will flash and the alarm will sound, and the warning will be displayed on the central control touch screen!
| Machine Model | LY-KF05A |
| Power | 6KW |
| Power Supply | AC220V / 60Hz |
| Air Pressure | 0.5-0.6 MPa |
| Production Speed | 60-100 pcs/min, depending on raw material and whether inkjet printing or pad printing function is equipped |

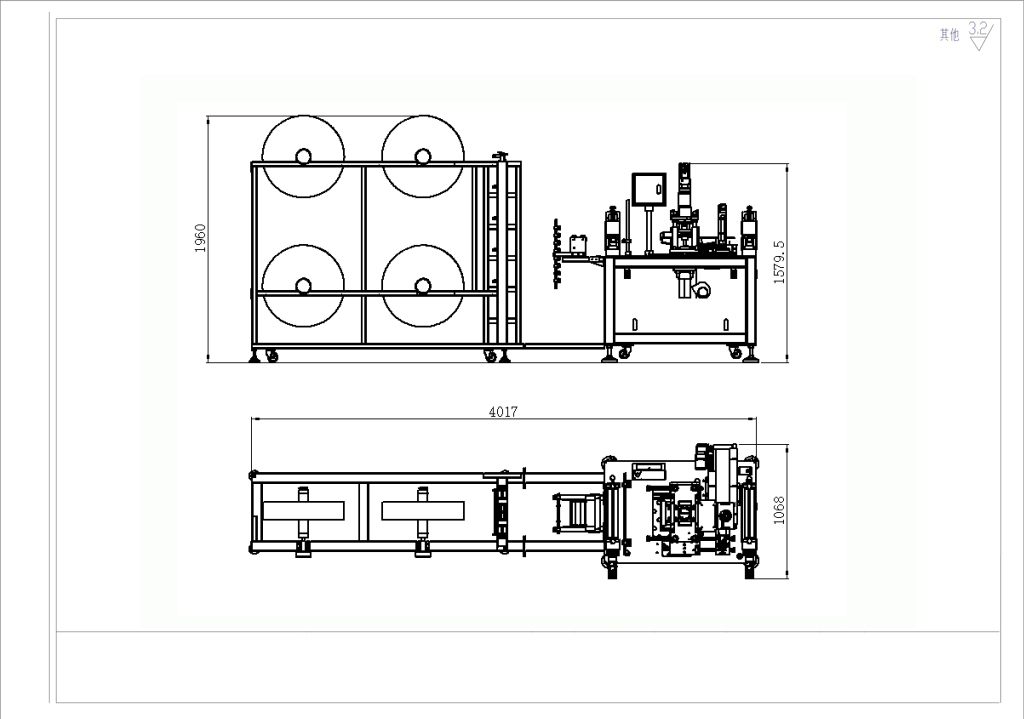

| Machine Dimension (L × W × H, mm) | 4017*1068*1960 |
| Weight | 700KG |
Name | Brand / Origin |
Main Electrical Control Cabinet | Self-made in factory, imported electronic components |
PLC | Inovance / Xinje |
Planetary Reducer | Zola |
Servo Motor | Inovance / Xinje |
Magnetic Powder Brake | Domestic Premium Brand |
Linear Guide Rail | HIWIN |
Inverter | Jingyan |
7-inch Touch Screen | Inovance / Xinje |
Switching Power Supply | OMRON, Japan |
Switches, Relays and Others | OMRON or IDEC, Japan |
Deep Groove Ball Bearing | Domestic Premium Brand |
Belt | Domestic Premium Brand |
Cutting Blade | Self-made, DC53 material |
Loy Technology Co., Ltd. We specialize in the research, development, manufacturing, and sales of intelligent automation equipment, with years of experience in the industry. Adhering to the principle of "Technology + Expertise + Service," and leveraging a team with over 20 years of experience, we have established a strong presence in the field of custom-made automation for non-woven products.Our products include mask machines, automated equipment for disposable non-woven products and respiratory protective equipment, packaging machines, and tissue machines, boasting leading technology and reliable quality. We collaborate with leading brands such as Dasheng and Sanqi, and our products are exported to Korea, Europe, and the United States, earning widespread customer recognition.
