Automation equipment for beauty and household disposable products

Compressed towel machine

This machine is an automated production system for disposable compressed towels/face cloths. It utilizes a hydraulic system for pressure control, allowing for real-time adjustment of pressure and compression. The mechanical components feature a modular design. A servo-motor control system and a high-precision planetary gear reducer ensure efficient and stable operation. The dual-roll design allows for uninterrupted material replenishment, increasing production efficiency, and it can be connected to a packaging machine for automated, real-time packaging.

TAGS: Compressed towel machine Compressed face towel machine

TEL MSG

Details Parameters Sample Company

Product Introduction

This machine is an automated production system for disposable compressed towels/face cloths.  It utilizes a hydraulic system for pressure control, allowing for real-time adjustment of pressure and compression. The mechanical components feature a modular design.  A servo-motor control system and a high-precision planetary gear reducer ensure efficient and stable operation. The dual-roll design allows for uninterrupted material replenishment, increasing production efficiency, and it can be connected to a packaging machine for automated, real-time packaging.

Product Parameters

ItemSpecification
Machine NameFully Automatic High-Speed Compressed Towel Machine
ModelLY-8800
Production Speed250 pcs/minThe above speed is based on forming dimension LWH: 4028*8mm. The actual speed for other sizes depends on product dimension, non-woven fabric material and gram weight. Molds need to be replaced for different forming sizes.
Non-woven Fabric TypeFull adhesive spunlace non-woven, plain / pearl / EF embossed
Fabric Gram Weight40–100 GSM
Unfolded Size L*W (mm)200–300 * 200–300
Forming SizeRound Φ40mm, square 2840mm, square 3050mm, etc. Custom sizes & embossed LOGO available
Folding StyleVertical C-shape (2–3 layers); horizontal half-fold
Fabric Roll Core Diameter76.2 mm
Max Outer Diameter of Fabric Roll1200 mm
Quality StandardPass rate ≥ 98%
Power Supply380V(±5%) / 50Hz, 3PH+N+PE, 15kVA
Hydraulic Requirement200L hydraulic oil (to be supplied by buyer)
Compressed Air6 bar, 600 LPM
Machine Dimension (L×W×H)4800 × 1350 × 1800 mm
Machine Weight3500 Kg
Configuration List

No.NameBrand
1Motion ControllerInovance
2HMI (Human Machine Interface)Weinview
3Servo MotorInovance
4Web Guiding SystemEunes
5InverterPanasonic, Japan
6Switching Power SupplyMean Well, Taiwan
7Low Voltage Electrical ComponentsSchneider Electric, France
8Proximity SwitchSICK, Germany, etc.
9Photoelectric SensorSICK, Germany
10Timing BeltFULO, JIEBAO, etc.
11BearingNSK (Japan), etc.
12Fixed Fabric Cutting BladeAluminum Steel Blade
13Movable Fabric Cutting BladeAlloy Sharp Steel
14Worm Gear ReducerTa Yan (JM)
15Pneumatic ComponentsAirtac, Taiwan
16Linear Guide & SliderHIWIN, Taiwan
17Planetary ReducerSHIMPO, Japan

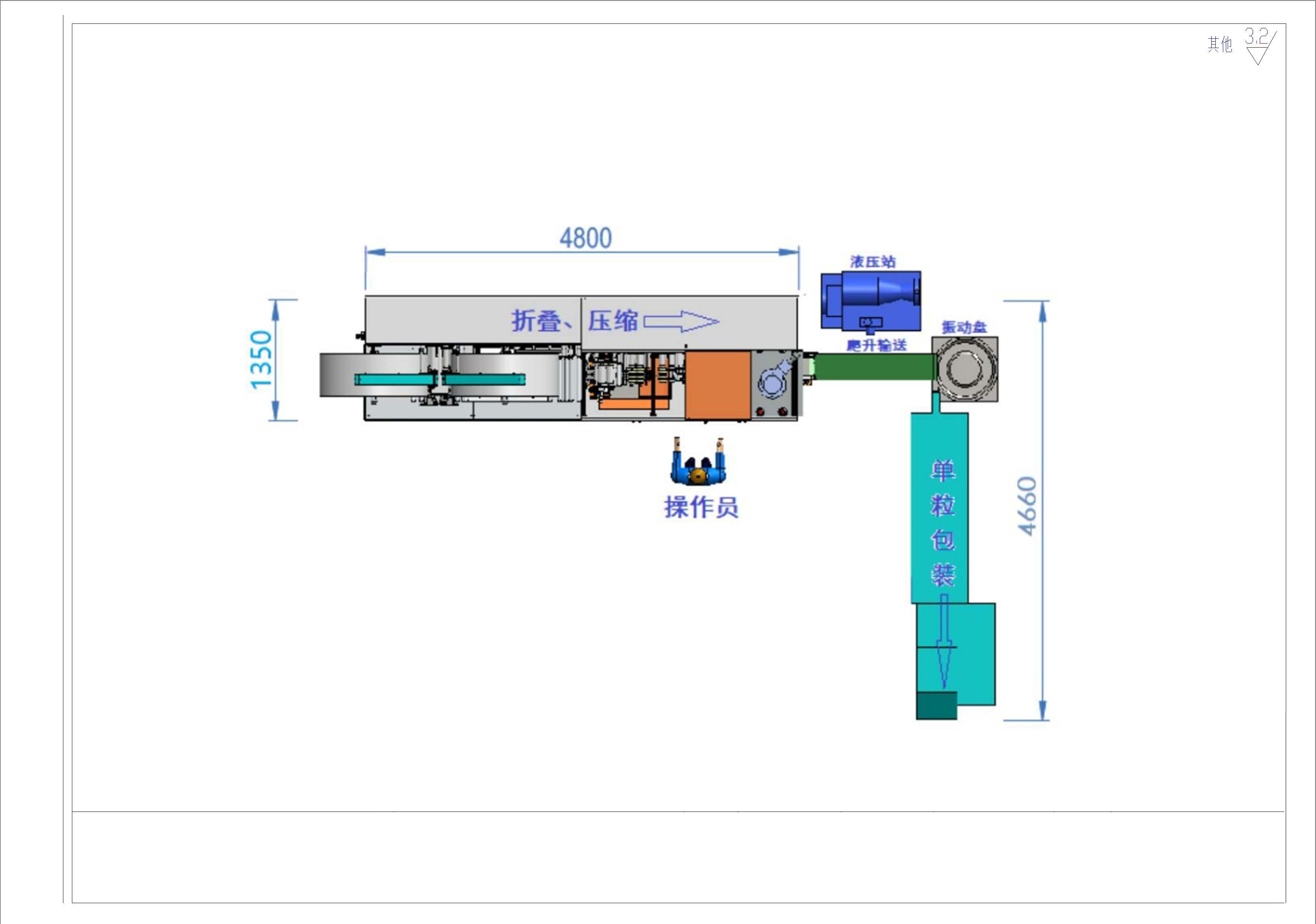

Product Drawings

Compressed towel machine

More photos
