Folding mask machine

Elastic fabric folding mask machine

This elastic fabric color-tracking and positioning folding mask machine automates the entire process from raw materials to finished product. It uses an automatic feeding rack and is equipped with a correction system to ensure that the material enters the machine stably. It automatically inserts the nose bridge strip, folds and shapes the mask, and cuts it to complete the production of elastic fabric folding masks. The equipment has low energy consumption, can be customized with different cutting dies according to needs, offers diverse products, and is simple and convenient to operate.

TAGS: Folding mask machine Elastic fabric mask machine

TEL MSG

Details Parameters Sample Company

Product Introduction

This elastic fabric color-tracking and positioning folding mask machine automates the entire process from raw materials to finished product. It uses an automatic feeding rack and is equipped with a correction system to ensure that the material enters the machine stably. It automatically inserts the nose bridge strip, folds and shapes the mask, and cuts it to complete the production of elastic fabric folding masks. The equipment has low energy consumption, can be customized with different cutting dies according to needs, offers diverse products, and is simple and convenient to operate.

Product Parameters

ItemSpecification
Product NameUltrasonic 3D Elastic Mask Production Machine
Labor Requirement1 feeding operator1 collecting operator
Model No.LY-K3D5
Dimension Tolerance±1MM (excluding raw material tolerance)
Overall Dimension4437*1260*1949mm
Machine Weight600 KG
Power10KW
Installation TypeFloor-mounted
Production Capacity100–120 pcs/min
Power Supply50HZ-60HZ, 220V-230V
Machine MaterialAluminum Alloy
Raw Material Roll SpecsOuter fabric width:195mm, Melt-blown fabric width:175mm, Inner fabric width:195mm, Elastic ear loop width:120mm
Applicable IndustriesSanitary products, medical supplies, protective equipment manufacturing
Packing DimensionsMaterial rack: L2100 × W1100 × H1700mmMain machine: L2750 × W1700 × H1450mmWeb guide tension rack: L1100 × W1050 × H1800mmTotal Packing Weight: 350KG

Configuration List

No.Item NameBrandSpecification & DescriptionQuantityWarranty Period
1Electric CabinetSelf-madeCustom-made by our company1 set1 year
2Touch ScreenXinjeTG765S1 unit1 year
3Switching Power SupplyMean Well120W DC24V1 unit1 year
4Servo MotorHCFA750W5 sets1 year
5Control Panel SwitchChintEmergency Stop / Stop / Start1 set1 year
6RelayOmron24V coil4 sets1 year
7Color Mark SensorPanasonicLX-1012 sets1 year
8Web Guide ControllerTension TechnologyEPC320H1 set1 year
9AC ContactorChint220V1 set1 year
10Ultrasonic Generator CabinetHuizhuan15K, 2600W cabinet2 sets1 year
11Ultrasonic Horn & TransducerHuizhuan270*201 setNot covered under warranty
12Ultrasonic Horn & TransducerHuizhuan110*201 setNot covered under warranty
13Cutting DieSelf-made173/1801 setNot covered under warranty
14Edge Sealing Tooth DieSelf-made173/1801 setNot covered under warranty
15Printing Tooth DieSelf-made173/1801 setNot covered under warranty
16Electric CabinetSelf-madeCustom-made by our company1 set1 year
17Control Panel SwitchChintEmergency Stop / Stop / Start1 set1 year
18Switching Power SupplyMean WellDC24V, 100W1 unit1 year
19Servo DriverHCFA750W3 sets1 year
20Servo MotorHCFA750W3 sets1 year
21PLCMitsubishiMitsubishi1 set1 year

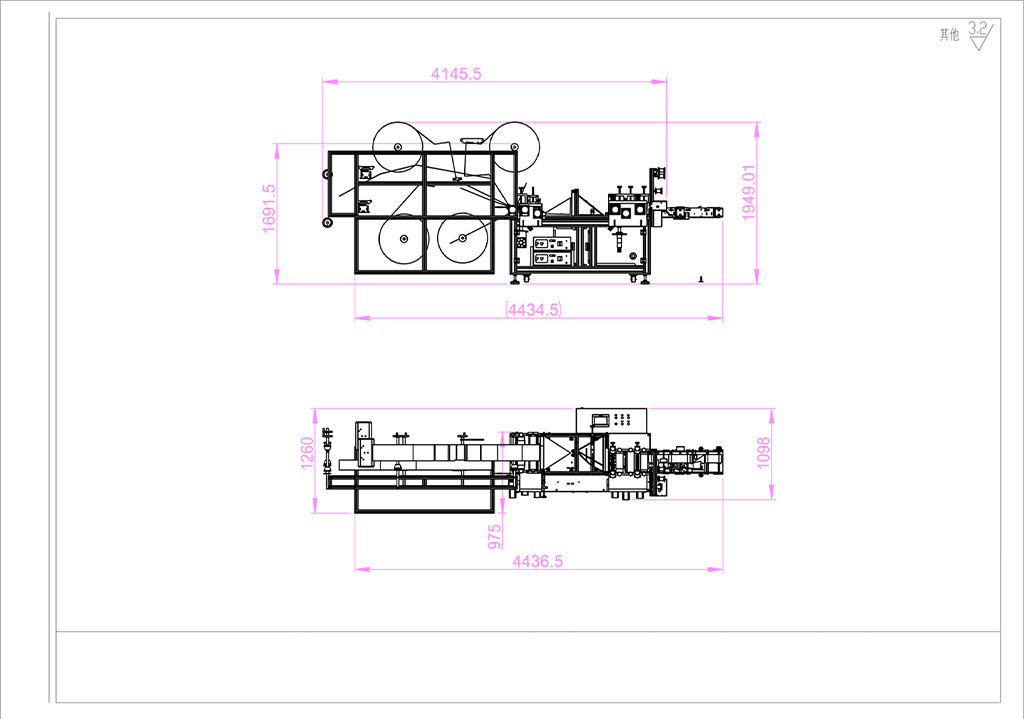

Product Drawings

Elastic fabric folding mask machine
