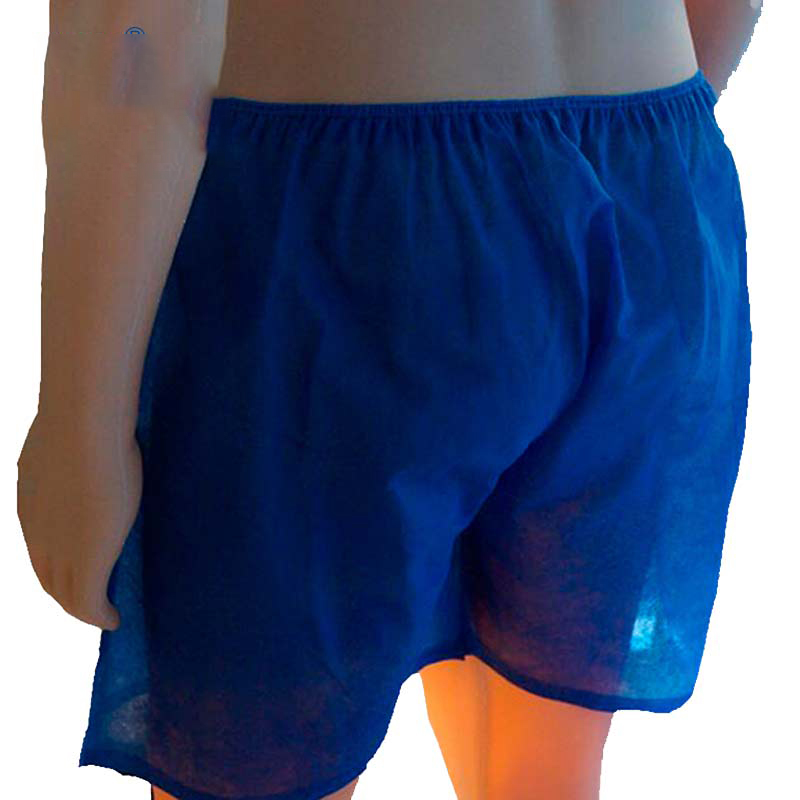

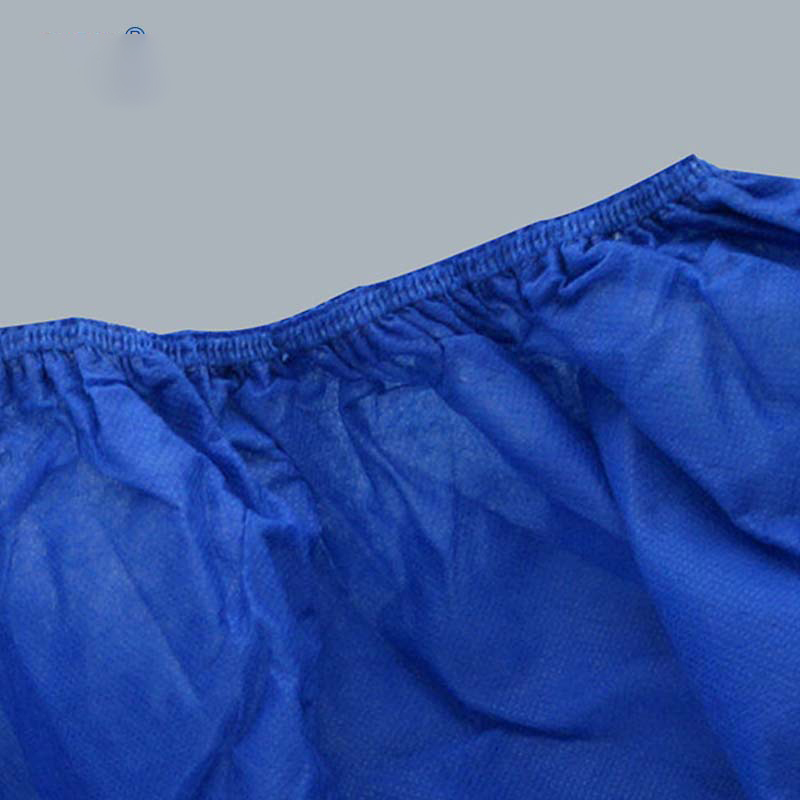

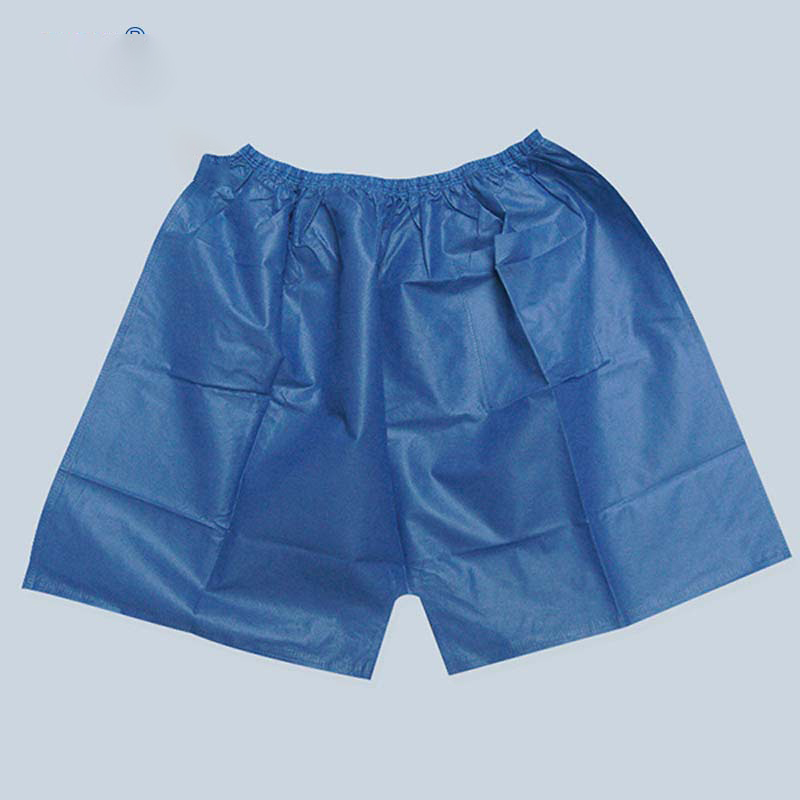

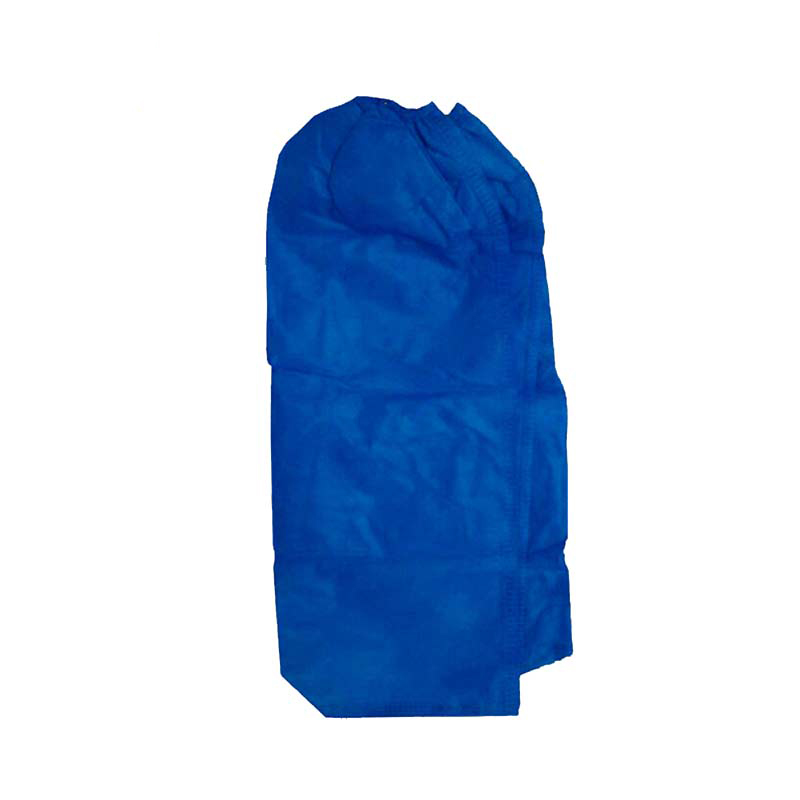

This machine utilizes ultrasonic welding technology to manufacture one-piece molded disposable non-woven medical pants. It features a user-friendly interface requiring only one operator. Controlled by an integrated PLC system, the machine offers high stability and a low failure rate; the use of imported gear-brake motors effectively minimizes the product defect rate. It is built with an aesthetically pleasing, robust aluminum alloy frame that is rust-proof. By changing molds, the machine can produce disposable non-woven medical pants in various specifications. Designed with the user in mind and constructed from high-quality materials, the finished product is breathable, comfortable, hygienic, convenient, safe, and attractive.
Equipment Features:
1) Automated operation ensures simplicity and high efficiency, including automatic folding and packaging.
2) Equipped with photoelectric detection devices for high reliability and stable performance.
3) Ultrasonic welding saves time and labor while being environmentally friendly.
4) Features a self-diagnostic function for clear, immediate fault indication.
5) Streamlined drive system ensures reliable operation and easy maintenance.
6) The machine primarily utilizes a steel structure, offering high strength, an attractive appearance, and rust resistance.
7) Waist circumference range: 500–750mm; maximum pant length: 500mm; packaging bag length: 150–170mm.
| Model | LY-MS002 |

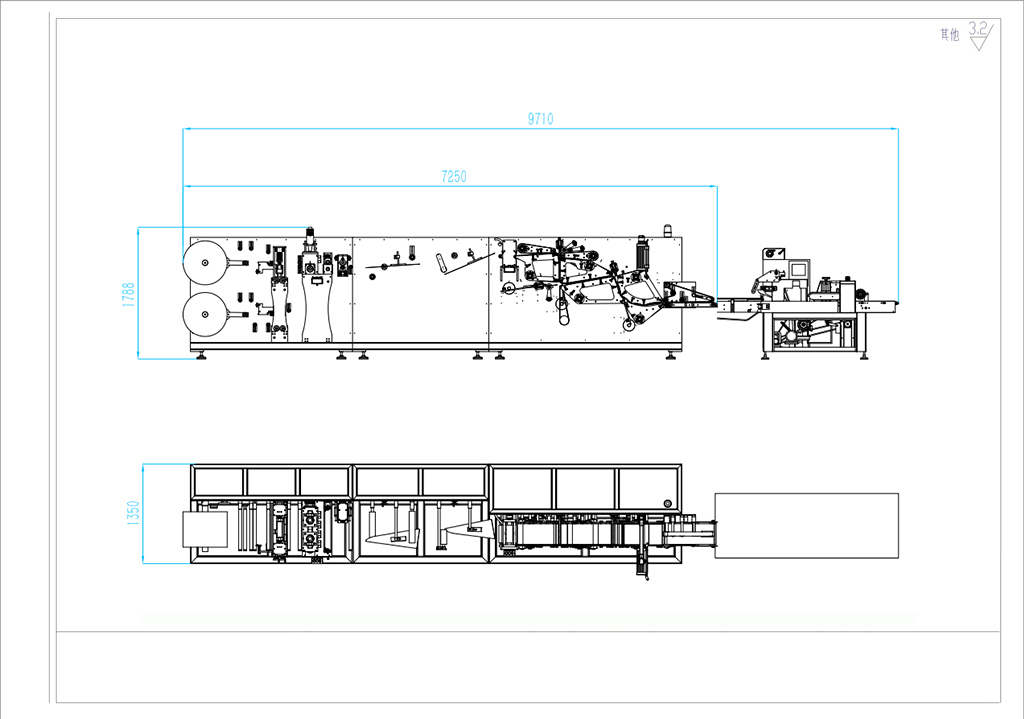

| Dimensions | 9710*1350*1800mm |
| Output power | 6Kw |
| Speed | 40-50pcs/min |
| Air pressure | 0.6-0.8 mpa |
| Weight | 1800KG |
| Power supply | Ac220/380v 50/60hz |
| Name | Quantity | Brand/Origin |
|---|---|---|
| Horizontal Welding Wheel | 1 pc | Self-made, SKD11 |
| Edge Welding Wheel | 4 pcs | Self-made, SKD11 |
| Cutter Wheel | 1 pc | Self-made, DC53 |
| Inner Cutting Wheel | 1 pc | Self-made, DC53 |
| Knife Pad Wheel | 2 pcs | Self-made, DC53 |
| Ultrasonic Mold (15k) | 2 pcs | Factory Self-made |
| Ultrasonic Mold (20k) | 4 pcs | Factory Self-made |
| Ultrasonic Generator (15k) | 2 sets | Hongri |
| Ultrasonic Generator (20k) | 4 sets | Hongri |
| Ultrasonic Transducer (15k) | 2 sets | Factory Self-made |
| Ultrasonic Transducer (20k) | 4 sets | Factory Self-made |
| Stepping Motor | 4 sets | Leadshine |
| 0.75KW Servo Motor | 11 sets | Xinje |
| 0.75KW Planetary Reducer | 11 sets | |
| 1.5KW Servo Motor | 1 set | Xinje |
| 1.5KW Planetary Reducer | 1 set | |
| Glue Spraying System | 1 set | |
| Main Circuit Control Box | 3 sets | Factory Self-made, Imported Electronic Parts |
| PLC | 1 unit | Xinje |
| Touch Screen | 1 unit | Xinje |
| Switching Power Supply | 1 set | |
| Switch Relays & Other Components | 1 set |
| Name | Quantity | Brand/Origin |
|---|---|---|
| 1KW Servo Motor | 2 sets | |
| Aluminum Housing Worm Gear Reducer | 2 sets | |
| Touch Screen | 1 unit | Weinview |
| Controller | 1 unit | Huayuan |
| Main Circuit Control Box | 1 set | Factory Self-made, Imported Electronic Parts |
| Switching Power Supply | 1 set | |
| Switch Relays & Other Components | 1 set | |
| Air Blower | 1 unit |
